2008 ss ecm pinout
Reply
Subscribe
Thread Tools
Search this Thread
08-07-2016, 08:06 PM
#
11
ULOS2A6
Member
Thread Starter
Join Date: 02-10-2013
Location: Fullerton,Ca
Posts: 98
I just noticed that the colored diagram has 60 pins and the Alldata shows 58 pins. Also the colors don't seem to match between the 2. Any ideas?
Reply
ULOS2A6
View Public Profile
Send a private message to ULOS2A6
Find More Posts by ULOS2A6
08-07-2016, 08:35 PM
#
12
donbrew
Technical Moderator
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,671

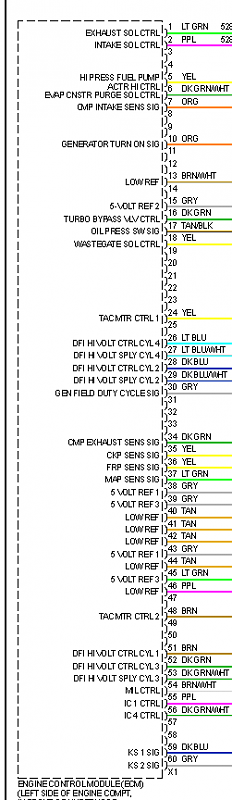

I think that was 1/2 of the other connector. Here are both halves of the 96 pin connector.
Attached Thumbnails
Attached Images
Reply
donbrew
View Public Profile
Send a private message to donbrew
Find More Posts by donbrew
08-07-2016, 08:39 PM
#
13
donbrew
Technical Moderator
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,671
This is the other one
Attached Thumbnails
Reply
donbrew
View Public Profile
Send a private message to donbrew
Find More Posts by donbrew
08-07-2016, 10:22 PM
#
14
ULOS2A6
Member
Thread Starter
Join Date: 02-10-2013
Location: Fullerton,Ca
Posts: 98
Thanks, it makes sense now. You have saved me a bunch of time!
Reply
ULOS2A6
View Public Profile
Send a private message to ULOS2A6
Find More Posts by ULOS2A6
Reply
Subscribe
