Being an old fashioned shade tree mechanic with limited funds I thought I might try something a little differant.
Notice there is a small change under the hood.......
Cold air from high pressure area in front.......
I will not take credit for the entire idea. I first saw the modification to the stock airbox at the Gatlinburg G2G last spring. Finally got around to doing the rest of the intake set up last weekend.
What is involved......
Cutting the stock air box down to the size of the actual box (cutting off the engine cover part)
Making a new connection on the other side of the airbox. I used sheet aluminum to form a new mounting tube.
Modify a brush attachment for a shop vac. (New intake port under the front cross beam.) Remove the brush and increase the size of the rear opening with another sheet metal tube. (I still need to make the opening larger in these pictures)
Modify the stock fuel line mount by bending it about 45 degrees toward the intake box, to clear the new tube.
Reuse the stock insulated cold air tube, with a new hose clamp holding it to the intake at the front.
Anyway thats my cheap cold air intake. Total cost Approx. $25
Notice there is a small change under the hood.......
Cold air from high pressure area in front.......
I will not take credit for the entire idea. I first saw the modification to the stock airbox at the Gatlinburg G2G last spring. Finally got around to doing the rest of the intake set up last weekend.
What is involved......
Cutting the stock air box down to the size of the actual box (cutting off the engine cover part)
Making a new connection on the other side of the airbox. I used sheet aluminum to form a new mounting tube.
Modify a brush attachment for a shop vac. (New intake port under the front cross beam.) Remove the brush and increase the size of the rear opening with another sheet metal tube. (I still need to make the opening larger in these pictures)
Modify the stock fuel line mount by bending it about 45 degrees toward the intake box, to clear the new tube.
Reuse the stock insulated cold air tube, with a new hose clamp holding it to the intake at the front.
Anyway thats my cheap cold air intake. Total cost Approx. $25
08-27-2009, 07:32 AM
#3
Senior Member
Thread Starter
Join Date: 03-07-2008
Location: Essex, Maryland
Posts: 361
Two things I forgot to note.
You have to close off the old opening in the air filter box
You will notice there is a drain hole in the filter cover next to a rib. I drilled a new drain hole on the other side of that rib because the intake tube is now on the other side.
You have to close off the old opening in the air filter box
You will notice there is a drain hole in the filter cover next to a rib. I drilled a new drain hole on the other side of that rib because the intake tube is now on the other side.
08-27-2009, 08:54 PM
#5
Senior Member
Thread Starter
Join Date: 03-07-2008
Location: Essex, Maryland
Posts: 361
While I did not measure it the theory is that there will be higher air pressure in front of the radiator. The fender area is a mostly dead air pocket, where as the area in front of the radiator is fed fresh air from the grill and under the bumper. That air flow is then restricted by the fins of the condensor and the radiator, causing a higher air pressure.
Chevy has actually used the same idea on the Corvettes, and the Camaros.

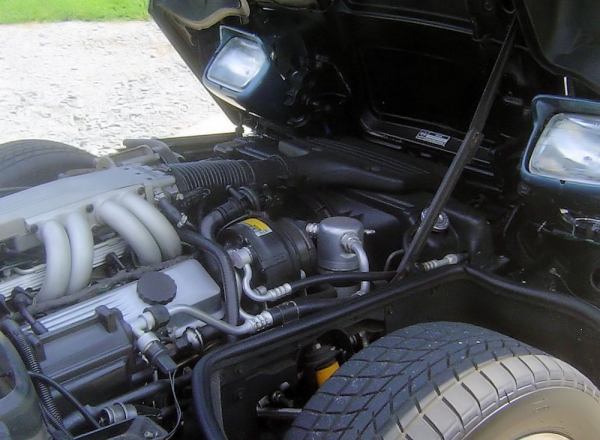

Corvette Intake
