Timing chain issues
07-04-2016, 05:20 PM
#1
Member
Thread Starter
Join Date: 04-09-2014
Location: Ball Ground, Ga
Posts: 32
Timing chain issues
I am trying to put my heads back on after replacing a bad exhaust valve. My problem is that a PO (previous owner) has put in a timing chain kit from Rock Auto. I know this because the picture on line shows the same chain markings. It has three black links one is flanked on either side by a copper link. It would be nice to know how many links between so I would know which one to use on the intake cam. I have tried all three and I cannot get a clear feeling. As I rotate by hand they never line up again. There appears to be only one position that feels like something is hitting. I have watched lots of videos on YouTube. They all use a chain with only three colored links. If any one could help I am at my wits end. It shouldn't be this hard!
2011 2.4l
Thanks
2011 2.4l
Thanks
Last edited by Scorangehhr; 07-04-2016 at 05:21 PM. Reason: Forgot to tell engine type
07-04-2016, 05:52 PM
#2
Platinum Member
Join Date: 12-06-2009
Location: Alabama
Posts: 11,094
Wow. That may be a tough one to find an answer to. Not sure if anyone has ever bothered to count the number of links between the marks.
Hopefully someone has one torn down and can get you a count.
Or, better yet, maybe someone has their old factory chain laying around and could help you out.
Hopefully someone has one torn down and can get you a count.
Or, better yet, maybe someone has their old factory chain laying around and could help you out.
Last edited by firemangeorge; 07-04-2016 at 06:38 PM.
07-04-2016, 06:57 PM
#3
Technical Moderator
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,688
It only goes on one way. 2 go to the cam shafts and 1 goes to the crankshaft.
The crankshaft TDC mark is NOT at the top. It is at about 5o'clock. That is probably the specially marked link.

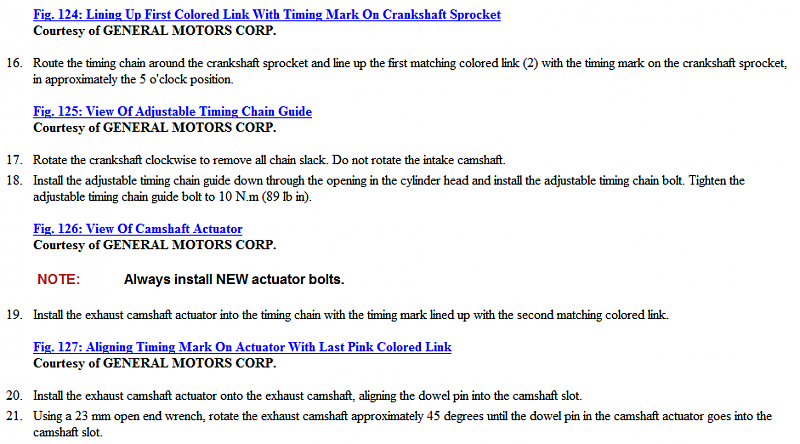

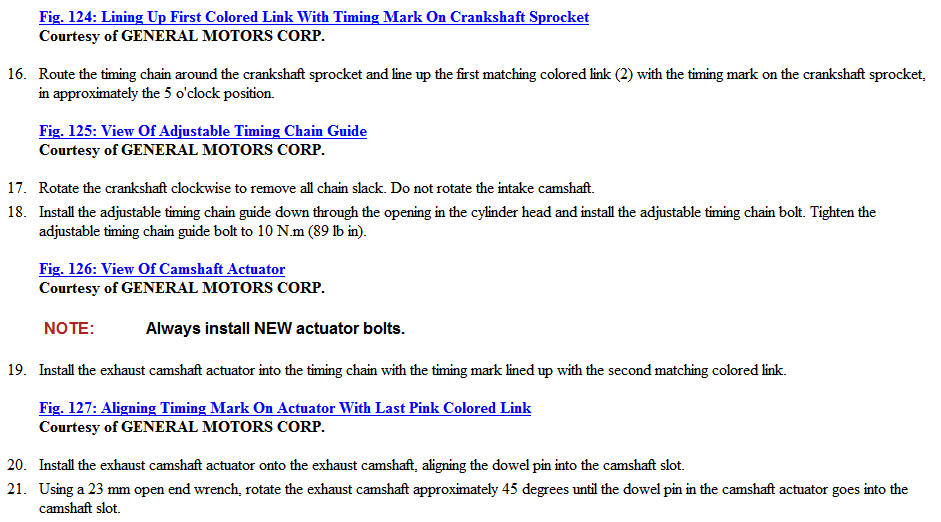

Here is the abridged procedure:
The crankshaft TDC mark is NOT at the top. It is at about 5o'clock. That is probably the specially marked link.
Here is the abridged procedure:
07-05-2016, 06:51 AM
#8
Administrator
Join Date: 10-13-2011
Location: Welland,Ont Canada
Posts: 36,498
07-05-2016, 07:32 AM
#10
Platinum Member
Join Date: 12-06-2009
Location: Alabama
Posts: 11,094
Nice video find Steve.
One thing I've always done with timing chain replacements on any engine. I will give the components a light coat of clean engine oil right before putting the covers back on.
Just to make sure it's lubricated for that initial startup.
One thing I've always done with timing chain replacements on any engine. I will give the components a light coat of clean engine oil right before putting the covers back on.
Just to make sure it's lubricated for that initial startup.
