alignment specs

Took my car in to be aligned after lowering and they asked me for the alignment specs.

I checked Eibach's website and it says nothing about this.

Any help?
__________________
MIKE—“Over Qualified & Under Educated”

"A fool always finds a greater fool to admire him." Nicolas Boileau-Despraux
GDZHHR is offline   Reply With Quote
Old 07-24-2007, 12:59 PM   #2
Platinum Member

solman98's Avatar

Join Date: 07-17-2006
Location: Dallas, GA
Member #: 1557
Posts: 5,796
Images: 20
Check out my gallery
Shouldn't they just go back to the stock settings?

I know when I did the 4/6 drop on my truck, that is all they did.
__________________
2006 1LT, 5-Speed, Born 12/9/2005, but hidden in the deep Florida swamps.
Found 9/30/2006

Black chrome lower billet, black chrome custom grill, K&N, LED tails, stock fogs on aftermarket wiring kit, 48" RECON "Big Rig" running board lights, 18" Cobalt Polished alloys, turbo tech sway bar. all exterior lights swapped to LED's, 35w 5K DDM HIDs. Upgraded to SS front rotors.
solman98 is offline   Reply With Quote
Old 07-24-2007, 01:02 PM   #3
Premium Member

GDZHHR's Avatar

Join Date: 04-30-2006
Location: Maryland Heights, MO
Member #: 1751
Posts: 9,996
Images: 761
Check out my gallery
That's what I thought.
__________________
MIKE—“Over Qualified & Under Educated”

"A fool always finds a greater fool to admire him." Nicolas Boileau-Despraux
GDZHHR is offline   Reply With Quote
Old 07-24-2007, 01:19 PM   #4
Senior Member

Join Date: 05-22-2007
Location: Huntington Beach, CA
Member #: 3363
Posts: 328
Check out my gallery
I just got my HHR aligned at a Showcase Chevrolet (my work) and I have the print out of all the specs.

Stock:
Front Right and Left Specified Range:
Camber: -1.7 to -0.2 degrees
Caster: +3.0 to +4.5 degrees (not adjustable)
Toe: 0.00 to +0.20 degrees
Cross Camber: -0.8 to +0.8 degrees
Cross Caster: -0.8 to +0.8 degrees
Cross SAI: not specified
Total Toe: +0.00 to +0.40 degrees

Rear Right and Left Specified Range:
Camber: -1.6 to -0.1 degrees
Toe: -0.03 to +0.28 degrees
Cross Camber: not specified
Total Toe: -0.05 to +0.55 degrees
Thurst Angle: -0.30 to +0.30 degrees
chingchonger is offline   Reply With Quote
Old 07-24-2007, 01:23 PM   #5
Platinum Member

solman98's Avatar

Join Date: 07-17-2006
Location: Dallas, GA
Member #: 1557
Posts: 5,796
Images: 20
Check out my gallery
Quote:
Originally Posted by GDZHHR View Post
That's what I thought.

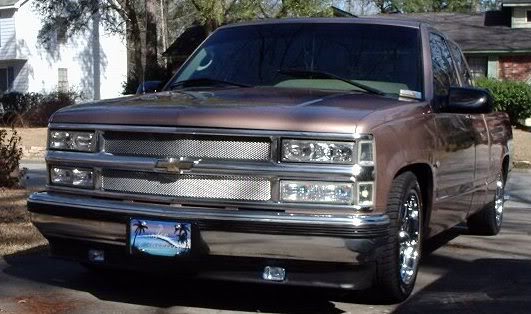

I would try a different shop. Mine drove great after, but wasn't that far off either after the new spindles/springs were installed. Guess we got lucky with the eye setting....
Click the image to open in full size.
__________________
2006 1LT, 5-Speed, Born 12/9/2005, but hidden in the deep Florida swamps.
Found 9/30/2006

Black chrome lower billet, black chrome custom grill, K&N, LED tails, stock fogs on aftermarket wiring kit, 48" RECON "Big Rig" running board lights, 18" Cobalt Polished alloys, turbo tech sway bar. all exterior lights swapped to LED's, 35w 5K DDM HIDs. Upgraded to SS front rotors.
solman98 is offline   Reply With Quote
Old 07-24-2007, 01:53 PM   #6
Senior Member

Join Date: 05-22-2007
Location: Huntington Beach, CA
Member #: 3363
Posts: 328
Check out my gallery
On your pickup, the spindles would compensate for any alignment variations. If you lowered it with just springs, you will get crazy camber. Toe would probably be the only thing needed to be adjusted for the front with spindles. The rear suspension alignment does not change with lowering because it has a solid rear axle.
chingchonger is offline   Reply With Quote
Old 07-24-2007, 02:03 PM   #7
Platinum Member

solman98's Avatar

Join Date: 07-17-2006
Location: Dallas, GA
Member #: 1557
Posts: 5,796
Images: 20
Check out my gallery
Quote:
Originally Posted by chingchonger View Post
On your pickup, the spindles would compensate for any alignment variations. If you lowered it with just springs, you will get crazy camber. Toe would probably be the only thing needed to be adjusted for the front with spindles. The rear suspension alignment does not change with lowering because it has a solid rear axle.
That was the reason I went with Spindles/springs verses using LCA's/spings (can't use LCA's/spindles). Seems to be the best to get that 4"s on the front. I don't have the alignment sheet anymore, it was in the glove box the day it was stolen (9/8/06). Still has not been recovered, gone for good.

Correct, no 4 wheel alignment needed, if so, you bent the frame. Back was easy, excect for the notch.
__________________
2006 1LT, 5-Speed, Born 12/9/2005, but hidden in the deep Florida swamps.
Found 9/30/2006

Black chrome lower billet, black chrome custom grill, K&N, LED tails, stock fogs on aftermarket wiring kit, 48" RECON "Big Rig" running board lights, 18" Cobalt Polished alloys, turbo tech sway bar. all exterior lights swapped to LED's, 35w 5K DDM HIDs. Upgraded to SS front rotors.
solman98 is offline   Reply With Quote
Old 07-24-2007, 02:27 PM   #8
Platinum Member

JoeR's Avatar

Join Date: 10-02-2005
Location: VA
Member #: 108
Posts: 1,321
Images: 19
Check out my gallery
Here's the specs.

The only things that need adjustment are the toe and headlights if off. Front camber will go slightly negative, but not enough to worry about. Rear won't be affected at all.


Click the image to open in full size.
__________________
Good engineering is simply finding the right wrench to pound in the correct screw.


JoeR is offline   Reply With Quote
Old 07-24-2007, 02:31 PM   #9
Senior Member

Join Date: 10-24-2005
Location: Atlanta
Member #: 213
Posts: 436
Images: 34
Check out my gallery
SoCalHHR use to have the specs posted, because most shops did not have SPECS for HHR, at all.

They came with the Gold-Lines I purchased through SoCalHHR.

Not sure if he still around, or if that info is available, through one of the threads referencing lowering the HHR.

Later,
Mark

I will check at home, I should have them, they may be the same as posted above!

EDIT: The post above looks like what SoCalHHR use to provide!
__________________
Markiemark is offline   Reply With Quote
Old 07-24-2007, 03:03 PM   #10
Senior Member

Join Date: 05-22-2007
Location: Huntington Beach, CA
Member #: 3363
Posts: 328
Check out my gallery
Quote:
Originally Posted by JoeR View Post
Here's the specs.

The only things that need adjustment are the toe and headlights if off. Front camber will go slightly negative, but not enough to worry about. Rear won't be affected at all.


Click the image to open in full size.
Were did you get your specs from?

Here's the scan from my alignment printout.

Click the image to open in full size.
