ground locations
#1
Technical Moderator
Thread Starter
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,671
ground locations
Here are the ground locations.
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/grounds_2007-2011.png" alt="Ground Locations" />
FWIW; location codes of components are:
x100 - under hood
x200 - under instrument panel
x300 - sides of passenger compartment
x400 - cargo compartment
G = ground
S = splice
and etc.
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/grounds_2007-2011.png" alt="Ground Locations" />
FWIW; location codes of components are:
x100 - under hood
x200 - under instrument panel
x300 - sides of passenger compartment
x400 - cargo compartment
G = ground
S = splice
and etc.
Last edited by whopper; 01-15-2017 at 06:19 PM.
#2
Technical Moderator
Thread Starter
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,671
There is a forum on the internet that has all the shop manuals online. It is devoted to the "big prize" of North America dot com (think Pontiac).
Last edited by donbrew; 04-30-2016 at 11:37 AM.
#3
Technical Moderator
Thread Starter
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,671
Like this?
alt="Front Ground" alt="Front Ground Le5"
alt="Harness Grounds G107" alt="Rear Harness Le5"

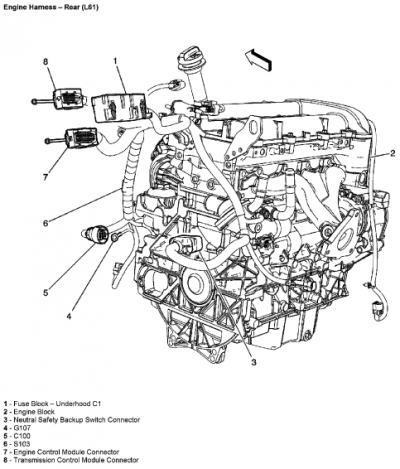

"Rear Harness L61" "Rad Support Ground"
old code:
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/front_ground.png" alt="Front Ground" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/front_ground_le5.png" alt="Front Ground Le5" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/harness_grounds_g107.png" alt="Harness Grounds G107" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/rear_harness_le5.png" alt="Rear Harness Le5" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/rear_harness_l61.png" alt="Rear Harness L61" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/rad_support_ground.png" alt="Rad Support Ground" />
alt="Front Ground" alt="Front Ground Le5"
alt="Harness Grounds G107" alt="Rear Harness Le5"
"Rear Harness L61" "Rad Support Ground"
old code:
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/front_ground.png" alt="Front Ground" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/front_ground_le5.png" alt="Front Ground Le5" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/harness_grounds_g107.png" alt="Harness Grounds G107" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/rear_harness_le5.png" alt="Rear Harness Le5" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/rear_harness_l61.png" alt="Rear Harness L61" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/rad_support_ground.png" alt="Rad Support Ground" />
Last edited by whopper; 01-15-2017 at 06:39 PM. Reason: edited to get the links to show but leaving the old references there in case the issue with pics not showing gets fixed.
#4
Technical Moderator
Thread Starter
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,671
And this?

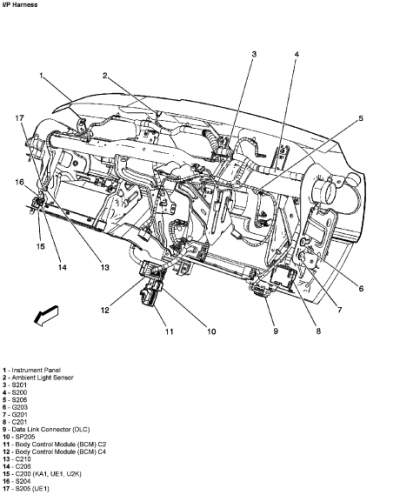

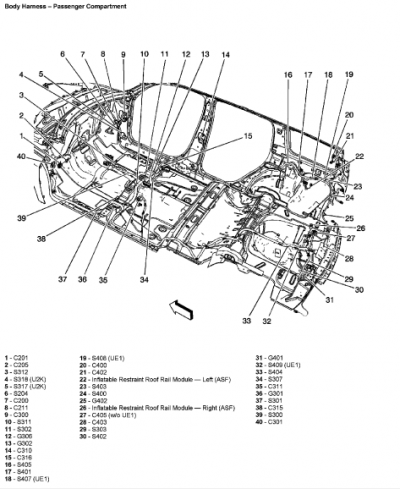

" alt="Ip Harness" " alt="G201 G203" " alt="Body Harness" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/ip_harness.png" alt="Ip Harness" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/g201_g203.png" alt="G201 G203" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/body_harness.png" alt="Body Harness" />
" alt="Ip Harness" " alt="G201 G203" " alt="Body Harness" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/ip_harness.png" alt="Ip Harness" /><img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/g201_g203.png" alt="G201 G203" />
<img src="https://www.chevyhhr.net/gallery/files/1/3/6/9/9/body_harness.png" alt="Body Harness" />
Last edited by whopper; 01-15-2017 at 06:37 PM.
#5
Technical Moderator
Thread Starter
Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 24,671
And this?

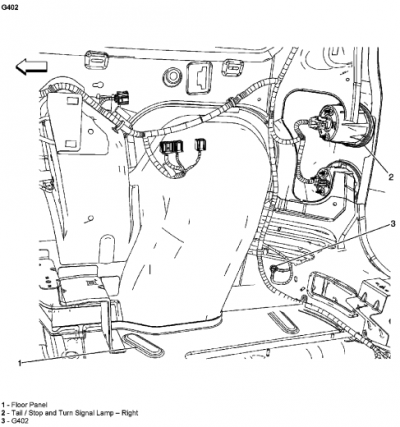

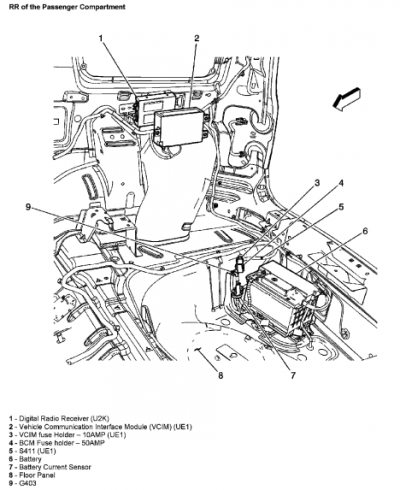

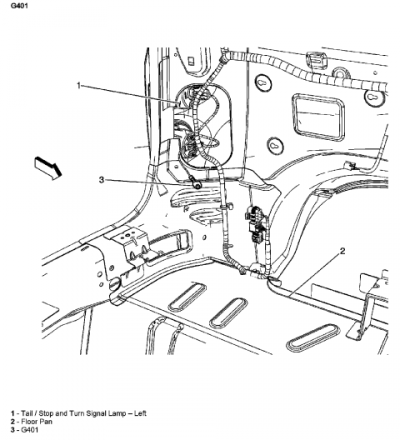

" alt="G401" " alt="G402" " alt="G403"
" alt="G401" " alt="G402" " alt="G403"
Last edited by whopper; 01-15-2017 at 06:38 PM.
