Keyfob cold solder repair

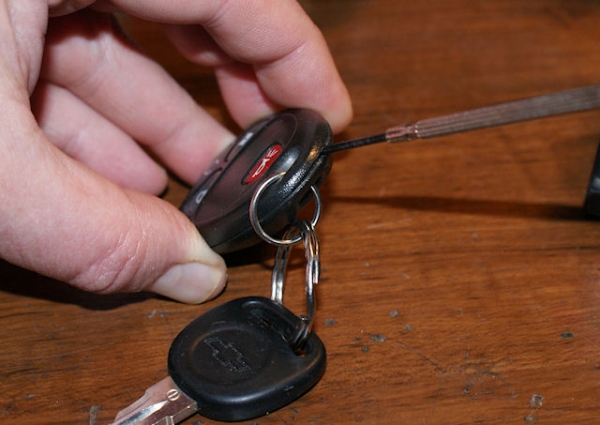

My wife's keyfob wasn't working so I figured I change the battery. Step one is to pry the clam shell apart.
Click the image to open in full size.

And much to my surprise (NOT) the battery holder was suffering from the often reported bad solder connections.
Click the image to open in full size.

OK, fire up the soldering iron.
Click the image to open in full size.

There are three solder points to repair. The center one is surface mount, and the two outer ones have feed-through holes. Make sure to fully seat the battery holder down in them.
Click the image to open in full size.

After repairing my wife's keyfob, I decided to check mine. Unbelievable lack of quality control on these things. While the electrical connection had not (yet) broken, the battery clip wasn't even level with the PCB. GM should really be ashamed of themselves for this part.
Click the image to open in full size.
__________________

"The Fancy Red Car"
25 Feb 08

Jeff® is offline   Reply With Quote
Old 03-25-2009, 07:40 AM   #2
Banned

Join Date: 10-24-2006
Location: The Show-Me State
Member #: 2177
Posts: 1,784
Images: 11
Check out my gallery
Quote:
Originally Posted by Jeff® View Post
GM should really be ashamed of themselves for this part.
GM doesn't make this part, they buy them from a supplier. Crack open fobs from other manufacturers and they'll be much the same. You could have just taken it back to the dealer and they would have given you a new fob, just like every other manufacturer.
hhrcrafty is offline   Reply With Quote
Old 03-25-2009, 07:58 AM   #3
Super Moderator

ChevyMgr's Avatar

Join Date: 11-23-2007
Location: Texas
Member #: 4865
Posts: 8,367
Images: 707
Check out my gallery
Jeff, I thought this was a nice HOW TO, so I moved it to that forum. Thanks for the detailed explanation of the repair.
__________________
Some things I know, Some things I don't

ChevyMgr is offline   Reply With Quote
Old 03-25-2009, 07:59 AM   #4
Moderator

Lucky's Avatar

Join Date: 12-24-2007
Location: Wadsworth,OH
Member #: 5120
Posts: 2,104
Images: 24
Check out my gallery
thanks for the how to great pics
__________________
Lucky is offline   Reply With Quote
Old 03-25-2009, 08:07 AM   #5
Senior Member

Join Date: 06-02-2008
Location: Fairport Harbor, OH
Member #: 6995
Posts: 2,366
Images: 412
Check out my gallery
Quote:
Originally Posted by hhrcrafty View Post
GM doesn't make this part, they buy them from a supplier. Crack open fobs from other manufacturers and they'll be much the same. You could have just taken it back to the dealer and they would have given you a new fob, just like every other manufacturer.
Yes, I know they get it from a supplier, but ultimately they are responsible for what they deliver to the customer. In any case, my soldering skills are as good as anyone's although I seldom do it anymore. I fear going to the dealer would be a waste of valuable time and I would just as likely get another one doomed to fail. Ain't gonna fail now.
__________________

"The Fancy Red Car"
25 Feb 08

Jeff® is offline   Reply With Quote
Old 03-26-2009, 09:16 AM   #6
Senior Member

Join Date: 10-30-2007
Location: OHIO
Member #: 4670
Posts: 382
Images: 36
Check out my gallery
same thing happened to my fob, but the board was cracked. $65 for a new fob and $30 to program it. i only paid the programing cause my samesman is awesome and gave me the fob for free.

if my new does this ill be solderng it.
__________________
SLVR FOX is offline   Reply With Quote
Old 03-27-2009, 02:15 PM   #7
Senior Member

Join Date: 12-24-2008
Location: Grass Valley, CA
Member #: 13080
Posts: 706
Images: 72
Check out my gallery
I also liked the post.

Not all of us have easy access to the dealer. My dealer is 5 hours away and my ability to do simple repairs is paramount to both my life's enjoyment and time. Warranty is not the deciding factor to me - time, convenience and money is. Good Jeff!

I do agree with the general statement about the poor construction of FOBs. I have had solder connection problems with whatever vehicle/alarm FOB I have had.
Sno White is offline   Reply With Quote
Old 03-31-2009, 10:52 AM   #8

Join Date: 03-30-2009
Location: California
Member #: 14517
Posts: 3
Check out my gallery
Key fob

I found the same problem and fixed it myself also. Just about bought a new one, thankfully I didn't. So many of these problems are poor quality control. Now I'm having a squeal in the fan motor under the dash. Has any one gotten in to that?
RStruthers is offline   Reply With Quote
Old 03-31-2009, 01:13 PM   #9
Senior Member

Join Date: 08-06-2008
Location: Grand Haven, MI
Member #: 8160
Posts: 1,708
Images: 144
Check out my gallery
Jeff, this is a great write up with great pics. Very helpful to anyone who wants to do the repair themselves.
Also, we now all know that the replacement battery is a CR2032
