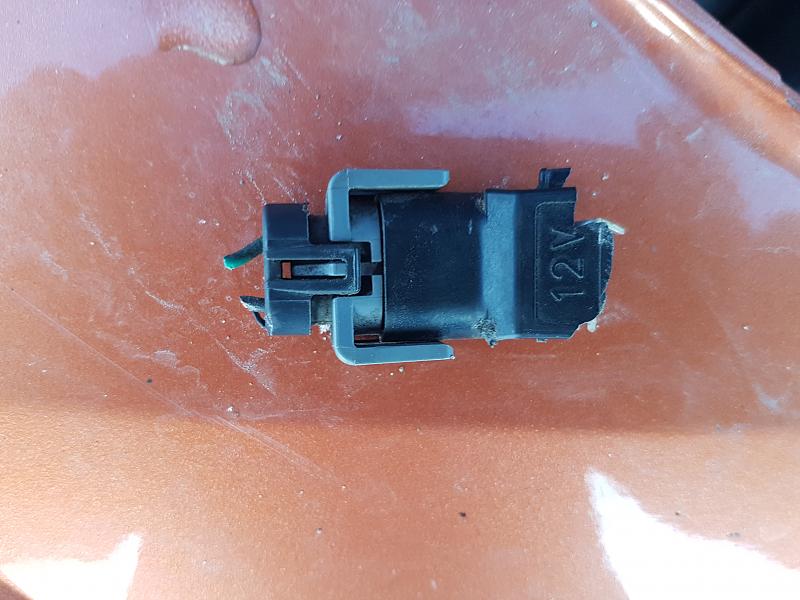

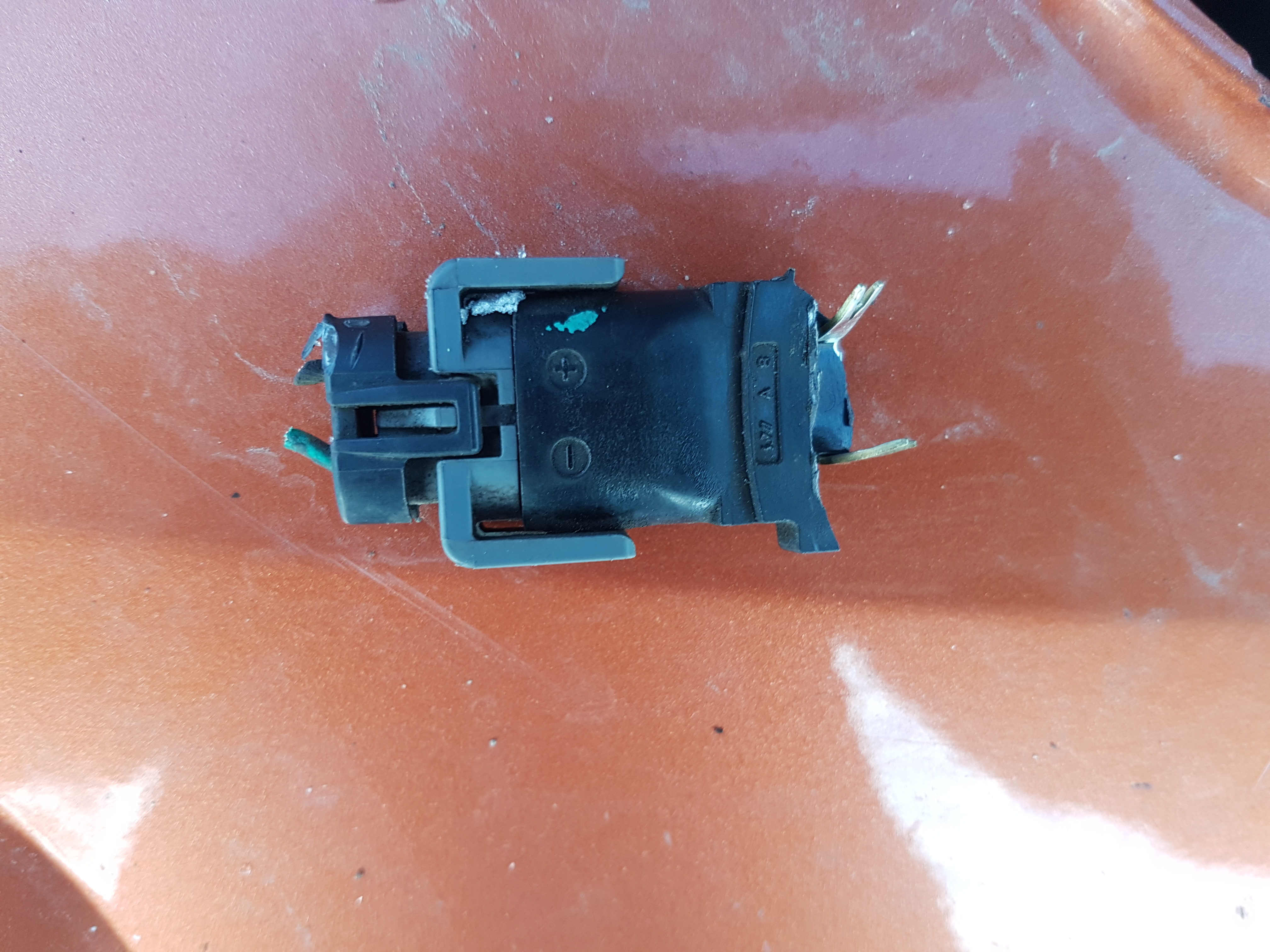

I have a 2006 chevy hhr .2.4L...an electrical plug below my alternator somehow got jammed between the wheel and block and tore the wire out ....I have looked at all the wiring diagrams ....I have the alternator out....and can't figure out where it goes......please help .. it's just a green hot and a ground 12v pic enclosed

Dave Sollows

Pics

Dave Sollows

Pics

RJ_RS_SS_350

Looks like the one that is at the front of the AC compressor.

donbrew

It is a connector, where are the other wires broken off?

Are the wires to the A/C there? That's the only 2-pin connector I see that is under the hood.

RJ_RS_SS_350

And it's not just a loose, dangling wire. It's a hard connection to the front of the compressor, just behind the pulley. I can't imagine how it could have come off like that.

What wheel and what block are you referring to?

Dave Sollows

It is the wheel in the picture ....I have the alternator out now ....so I could get a better look I believe the other end of the wire got chewed up ....the connector was intact ...one end connected ...I later clipped off because the other end was mangled....and believe me it was a fluke happening...connector went in turned sideways and jammed ...if u are front on the wire was connected going toward the right ...it's somewhere on the left side midway down....all alt. Connections are there

RJ_RS_SS_350

So something sheared it off from the compressor. Where you live, you probably rarely use the AC, so you didn't notice the AC wasn't working. Then the wire was loose and dangling, and got caught up in the compressor pulley.

You probably will need a new compressor, unless someone can remove it, take it apart, and reattach a new connector. Either way, evacuate the refrigerant, R&R the compressor, and recharge the system with refrigerant. Not gonna be cheap.

Oldblue

Welcome to the site,

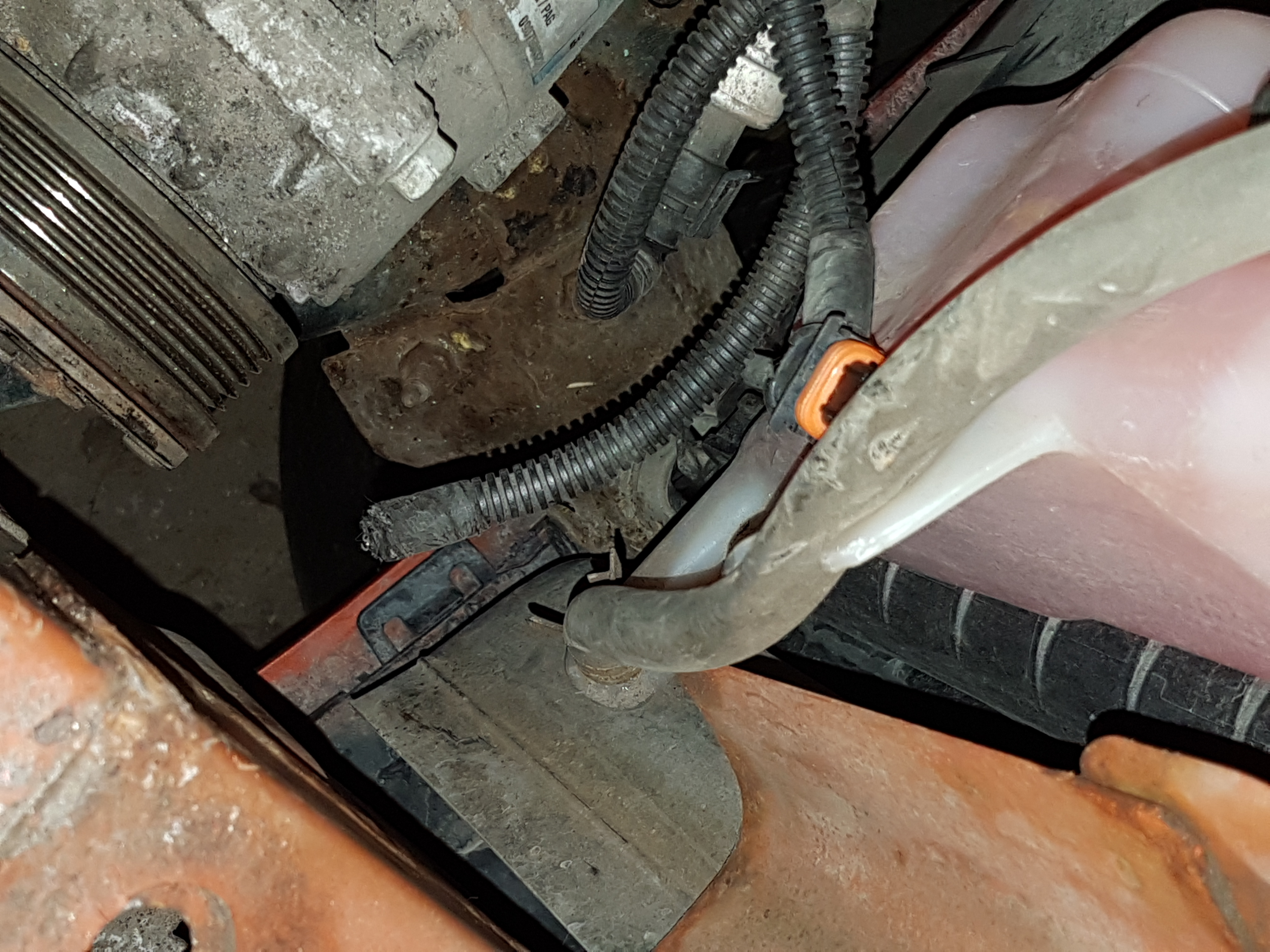

Does the ac compressor have a connection still on it like this ???

RJ_RS_SS_350

My 2009 looks more like this

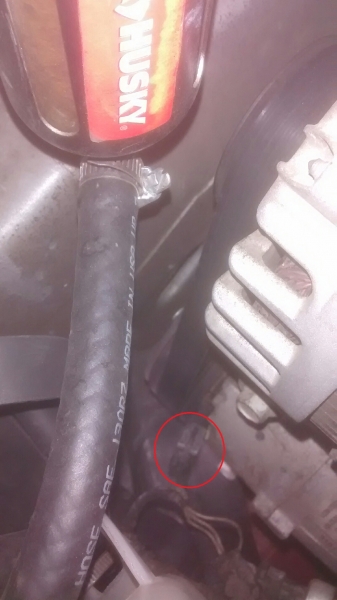

Here is a photo, red circle is connector.
