the inside of the fuel pump

Hi guys
Who dismantled the fuel pump?
I'm wondering: is there a fuel filter inside the pump?

I know there might be a mesh envelope.

But is there something similar there?

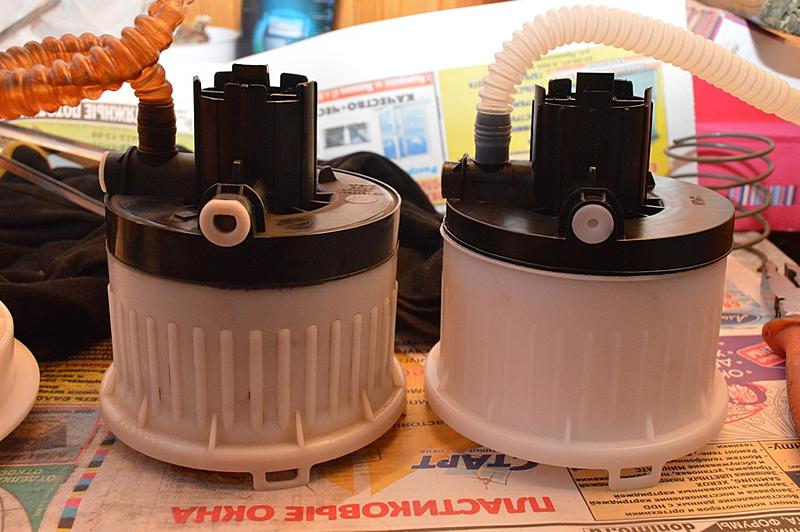

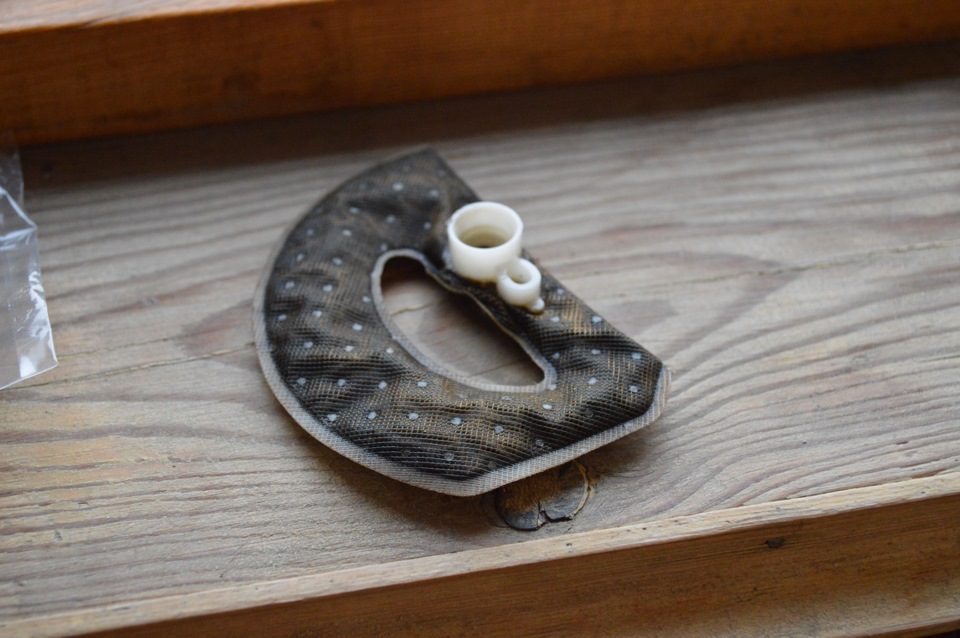

like on a picture
Attached Thumbnails
the inside of the fuel pump-9e719d4s-960-.jpg   the inside of the fuel pump-d0319d4s-960-.jpg

Last edited by geg; 04-10-2018 at 04:26 AM.
geg is offline   Reply With Quote
Old 04-10-2018, 07:54 AM   #2
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 14,228
As far as I know, it is just a nylon bag.
donbrew is online now   Reply With Quote
Old 04-10-2018, 09:14 AM   #3
Administrator

Oldblue's Avatar

Join Date: 10-13-2011
Location: Welland,Ont Canada
Posts: 16,437
Yes, a nylon bag very similar to this


Oldblue is offline   Reply With Quote
Old 04-10-2018, 10:59 PM   #4
geg
Senior Member
Thread Starter

Join Date: 03-22-2010
Location: Russia Ekaterinburg
Posts: 1,252
Is there a round filter that looks like a barrel? As in the first picture?
My wife has a fuel pump equipped with such a filter. My wife has a Ford focus.
To buy this filter is a real problem.
Of course, you can buy a gasoline pump assembly. But spend big money because of a clogged filter! .. At least, not humanely. I solved this problem regarding my wife's Ford. Now it's Hippo's turn.
That's why I'm asking this question.
geg is offline   Reply With Quote
Old 04-10-2018, 11:08 PM   #5
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 14,228
Different manufacturers make different design of after market replacements. I think the fuel filter is the "sock" type that just wraps around the uptake. It only filters the big stuff.

Probably not a clogged filter.
donbrew is online now   Reply With Quote
Old 04-10-2018, 11:47 PM   #6
geg
Senior Member
Thread Starter

Join Date: 03-22-2010
Location: Russia Ekaterinburg
Posts: 1,252
Yes .. Perhaps it is.
But I'm worried about this massive lower part of the pump. What's inside?
A cursory review of Internet resources shows that most manufacturers use a two-zone filtering system. In other words, almost always there are 2 filters: Nylon bag for sand and debris (coarse filter) + fine filter, which looks like a black plastic barrel. I sorted out the Ford Focus pump - there is just such a filtration system. At the same time, a metal fuel filter is suspended under the bottom of the HHR.
That's what puzzles me. Where the hell is the fine filter? Is it under the bottom or inside the pump?
In Russia there are few such cars, even fewer people who touched the fuel pump of the HHR. No informant.
At the same time, I understand that a simple American guy does not make sense to disassemble a gasoline pump. He will just buy a new one, because for him it is not a problem.
It remains to be hoped that someone has dismantled the pump simply out of curiosity and looked at how it works.
geg is offline   Reply With Quote
Old 04-11-2018, 08:32 AM   #7
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 14,228
I do know that it is possible to replace just the pump part of the assembly for a lot less money. The large white part is like a bucket there is a smaller black part in side it.

This is the best pic I can find.



and this from our site:


donbrew is online now   Reply With Quote
Old 04-11-2018, 10:47 PM   #8
geg
Senior Member
Thread Starter

Join Date: 03-22-2010
Location: Russia Ekaterinburg
Posts: 1,252
Yes .. I also saw these photos.
Unfortunately, they do not show the inside..
There was one Belarusian guy who dismantled the pump and put the photo on the network, I saw them a couple of years ago. But the site is no longer available. Very sorry...

I think, closer to summer, I'll get the pump from the nest and study its design properly. I'll take photos and put it on the site.
geg is offline   Reply With Quote
Old 04-12-2018, 08:29 AM   #9
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 14,228
Pretty sure it is the same pump for Cobalt, G5, G6, Ion, Zafira etc. Maybe on one of their sites.
donbrew is online now   Reply With Quote
Old 04-12-2018, 09:13 PM   #10
Moderator

RJ_RS_SS_350's Avatar

Join Date: 05-01-2014
Location: California
Posts: 2,638
GM P/N 19208967( supersedes 19168521) fits 2006-2008 HHR, no other vehicles listed. Listed as unavailable.


19179948 fits 2009-2011 No other vehicles also unavailable
19207956 fits 2008-2010 (SS) no other vehicles also unavailable
RJ_RS_SS_350 is online now   Reply With Quote
