I had a great time with this install & here's my tale:
Started off with a quality work space with ample tools supplied by our host 'Petrolmike' (HHR member).

The pictures show a lot of Mike. That's because he did the installation. I was around to provide moral support & occasionally loosen a bolt or two.

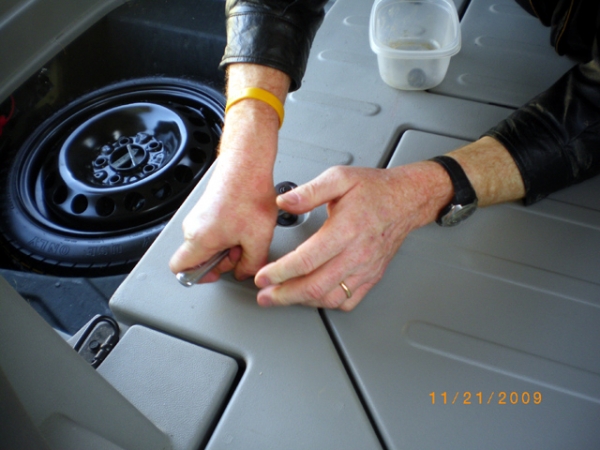

We started off by removing the rear cargo cover & spare tire cover door. Now we can remove the top cover of the storage box. There are 4 bolts:

Hand tools were fine for this:

Here's what it looks like with the top cover removed:

Here's the top cover:

Next remove the front & side facia covers. The clips are easily released by tugging on them firmly:

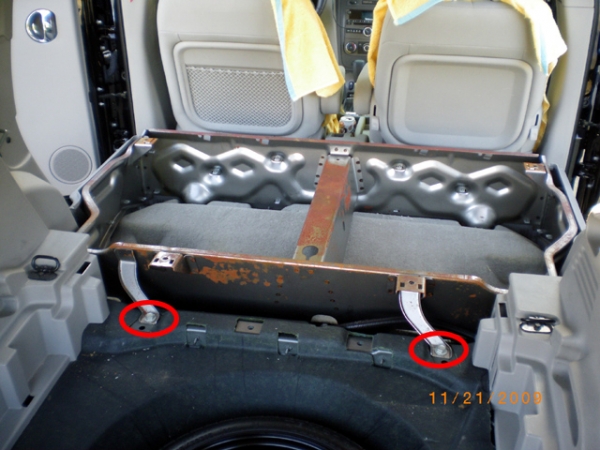

Next we need to remove the frame. Loosen & remove the bolts:

Impact gun was needed on most of these nuts:

Power tools. Ya gotta love 'em:

Here's the bare frame (no paint?):

A little surface rust evident:

Here's what you see with no frame or cover. Luckily, no rat nests!

I did have to vacuum a bit. Here are the studs that hold the seat/cover:

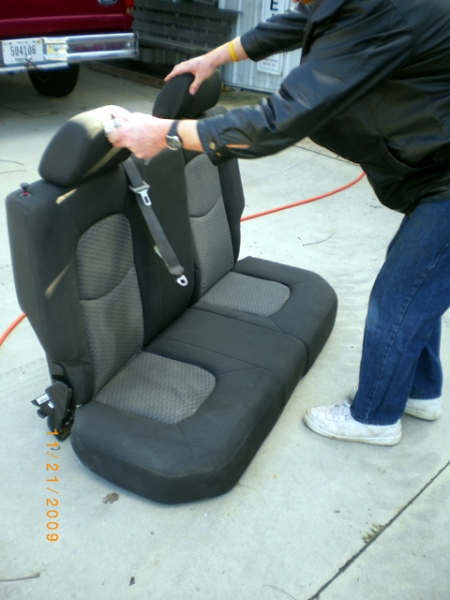

Doctor! We have a donor:

Install the seat with the back folded down. Pull the seat back toward the rear. Secure the back bottom seat rail with the nuts (hand tighten for now):
Image overload. Part 2 coming...

HHR_style

Install the seat with the back folded down. Pull the seat back toward the rear. Secure the back bottom seat rail with the nuts (hand tighten for now):

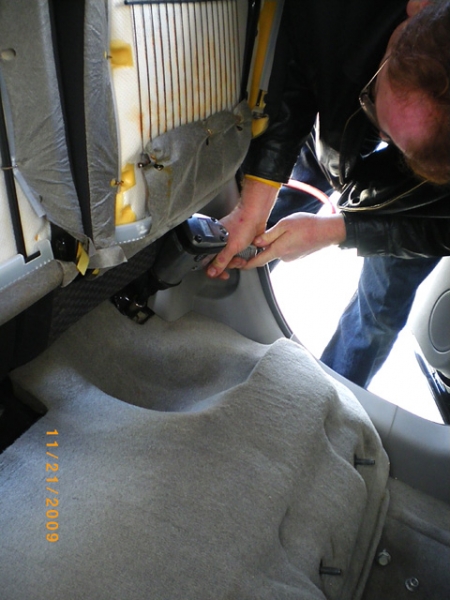

Flip the seat up & tighten the floor nuts (we used impact driver):

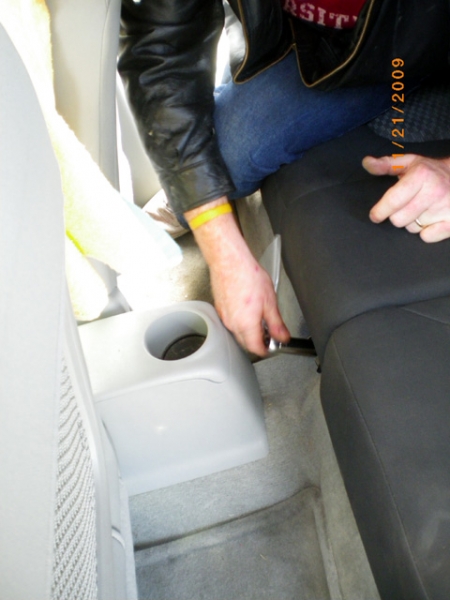

Fold the seat cushions down & secure the front floor nuts. Because of the tight space we had to (loosen &) tighten the front center nut by hand:

Push the seat backs into position to check alignment (ours was perfect):

Here's the insatalled pic taken in my garage when I finally got home:

I sat back there & it's quite comfortable.
Another item checked off my list. Excellent!
