Power brake and dashboard lights
Moderator
Joined: 01-23-2009
Posts: 26,532
From: Fredericksburg,VA
From what I can tell from this pic from the TSB it is just near the starter with a tube a TEE in the vac line.
Like I said there are photos of the install in the TSB.
I am making a wild guess that the motor has fried causing a voltage drain while it is trying to do it's job, then when the cut-off happens the dash lights go back to normal.
Like I said there are photos of the install in the TSB.
I am making a wild guess that the motor has fried causing a voltage drain while it is trying to do it's job, then when the cut-off happens the dash lights go back to normal.
Moderator
Joined: 05-01-2014
Posts: 8,511
From: California
Hey Don.
Every thing I've seen and read on this site shows the pump mounted by the oil pan/block seam. Between the radiator and engine.
Most likely can't clearly see the pump from above.
It mounts somewhere close to here(yellow X's) where I added my charge pipe brace.
Disregard the red circle.
Every thing I've seen and read on this site shows the pump mounted by the oil pan/block seam. Between the radiator and engine.
Most likely can't clearly see the pump from above.
It mounts somewhere close to here(yellow X's) where I added my charge pipe brace.
Disregard the red circle.
But Geeze, you could follow the hose that runs between the brake booster and the intake manifold. If there is a Tee in the hose, about 10" from the intake manifold, then you have the pump. Right about where I put a Tee for my catch can system, here(right side of pic, white Tee).
Moderator
Joined: 05-01-2014
Posts: 8,511
From: California
That too. Although I just read a thread here a couple days ago, where the dealer installed the pump, but never put the relay and fuse in, because they couldn't get the programming to make it all work...
Of course, this was in a manual trans car
So yeah, the fuse and relay would be there if it was installed in this here case. Relay #24 and fuse #8, not sure if you already posted that.
Of course, this was in a manual trans car
So yeah, the fuse and relay would be there if it was installed in this here case. Relay #24 and fuse #8, not sure if you already posted that.
Thread Starter
New Member
Joined: 12-04-2015
Posts: 18
From: Jackson, n.j.
Thanks to everyone,I will look later.Very interesting pictures,it shows me everything.I checked the car fax and it looks like it was never installed.The car had 2 owners before me.I bought it with 47750 miles on it . Geeze
Moderator
Joined: 05-01-2014
Posts: 8,511
From: California

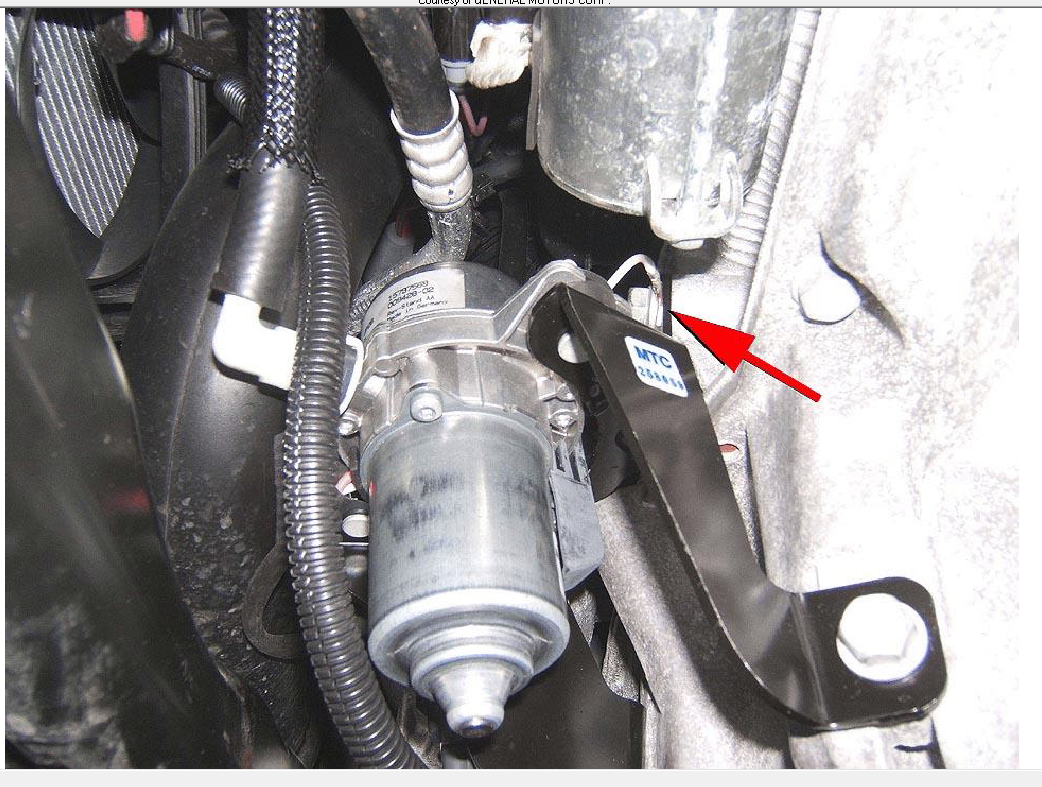

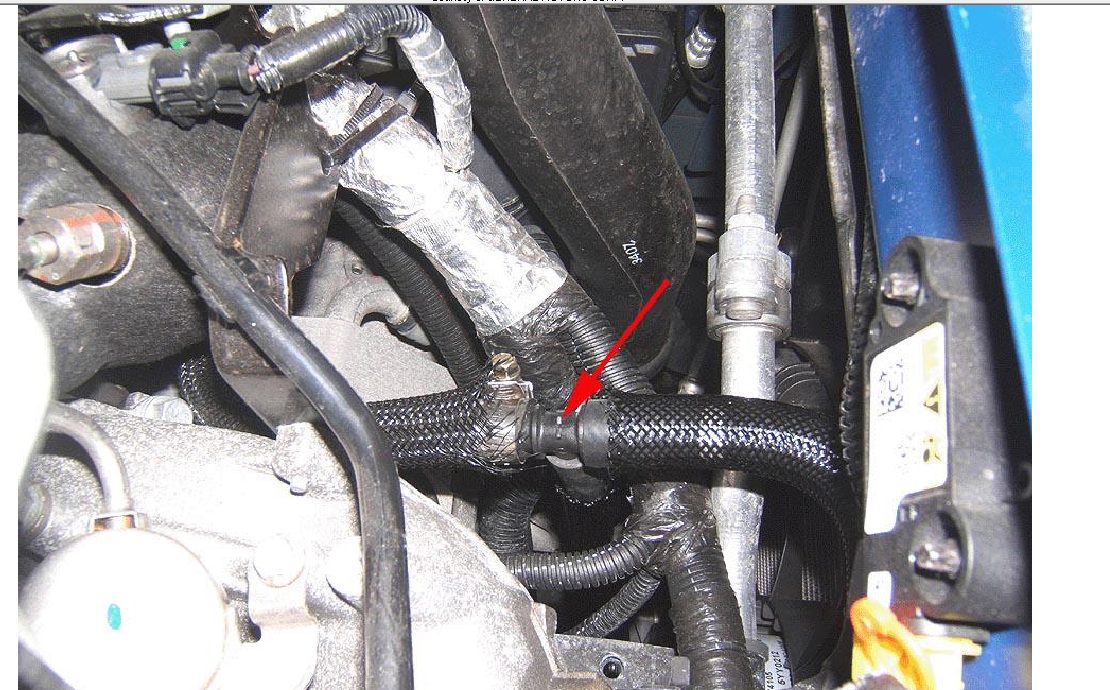

From what I can tell from this pic from the TSB it is just near the starter with a tube a TEE in the vac line.
Like I said there are photos of the install in the TSB.
I am making a wild guess that the motor has fried causing a voltage drain while it is trying to do it's job, then when the cut-off happens the dash lights go back to normal.
Attachment 45281
Attachment 45282
Like I said there are photos of the install in the TSB.
I am making a wild guess that the motor has fried causing a voltage drain while it is trying to do it's job, then when the cut-off happens the dash lights go back to normal.
Attachment 45281
Attachment 45282
Thread Starter
New Member
Joined: 12-04-2015
Posts: 18
From: Jackson, n.j.
The service manager who was a complete A hole .He told me that there was nothing wrong with the brake system, but if I want to install the vacuum pump it would be 1,600 dollars.I declined. I intend to stay the way it is. Thanks geeze
