Can anyone give me the correct part # for the 2 large mounting grommets at the back side of the airbox? Dealer first tried to give me 3 of the same ones(12563914), which was the smaller one up front. Next they game me 2 of 19177871 but they are also wrong.



Or records show the following - Air Filter Box mounting Grommet - GM calls it an "Insulator"
- P/N - 12563914



Mine have always been the same size, 2008 LT and 2011 LT.



That is the small one up front. The rear 2 are twice as big. The 1253914 can be made to work on the rear 2 but they are not right. The holes in the airbox is a little too big for them and they just pop right out.



how about ENGINE COVER GROMMET | Genuine*GM | 12591715 | GMPartsOutlet.net



What year HHR and size engine do you have ?
Maybe the earlier models were different?



Here is another from, A better choice I think
for LNF:
INSULATOR. Air Cleaner. AIR INTAKE SYSTEM for 2008 Chevrolet HHR. #25920906
for 2.2/2.4:
http://www.wholesalegmpartsonline.co.../12563914.html

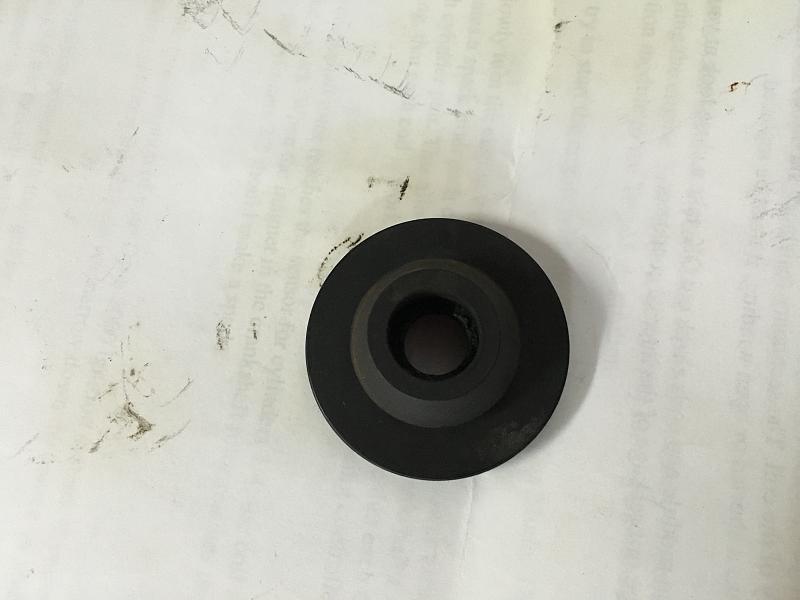

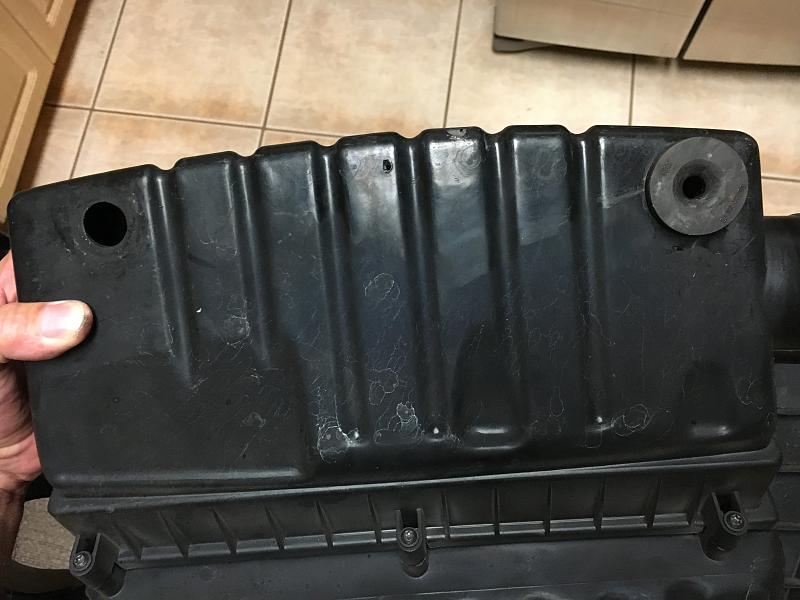

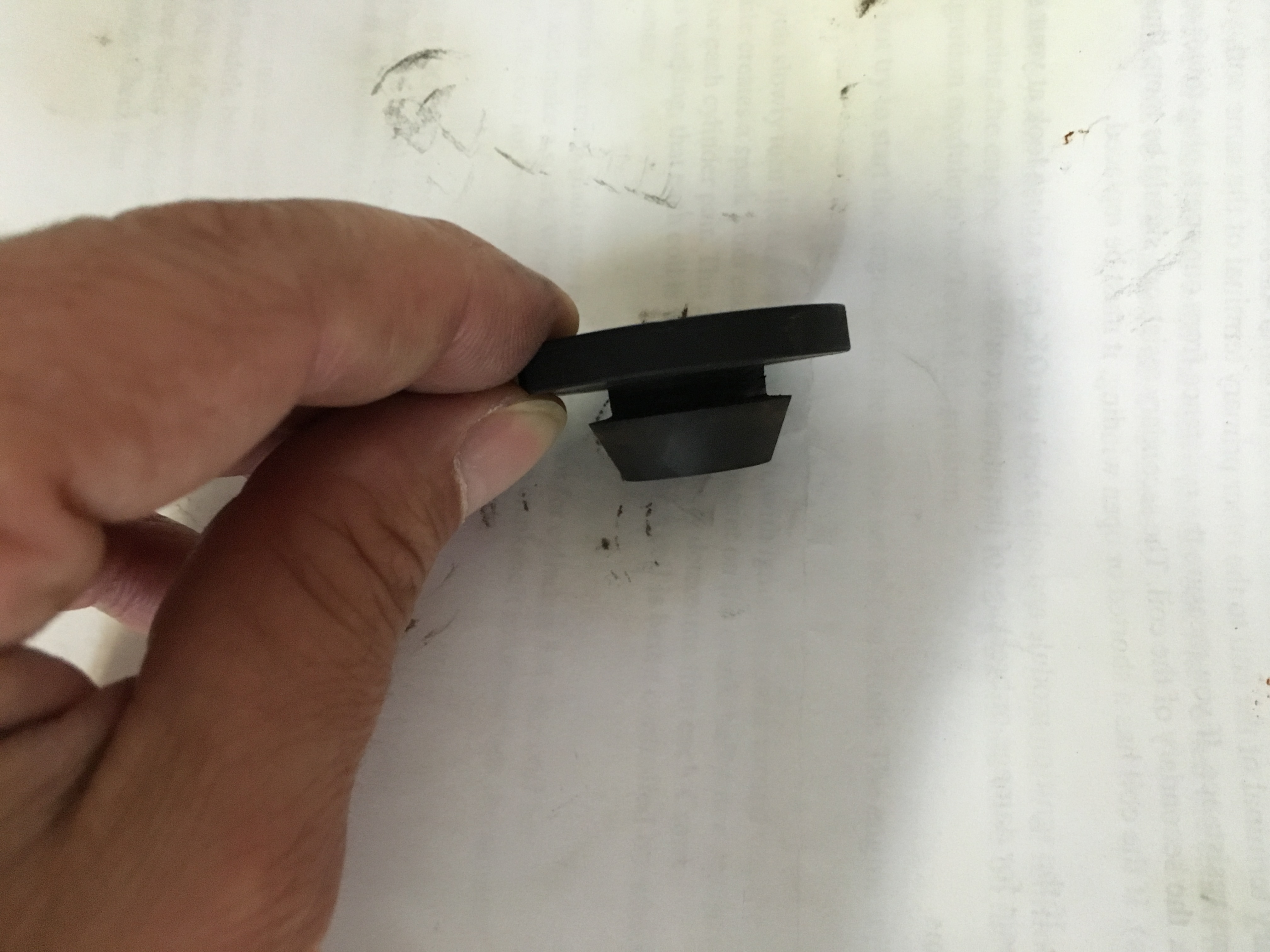

I guess none of you have had the airbox off an HHR lately. Few pictures attached. This is the one I'm looking for.

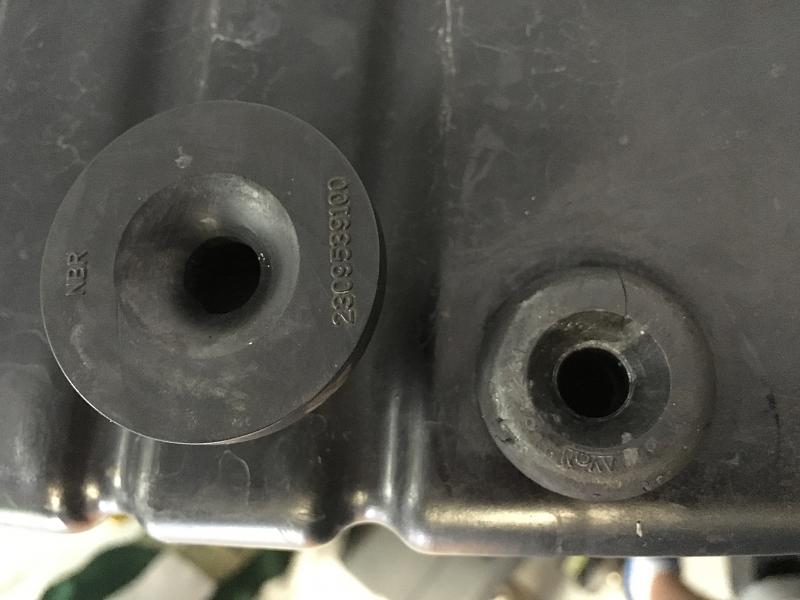

The one I need on the left, and 12563914 on the right. The parts diagrams are wrong! 2 of these bigger ones go in the back. 1 of 12563914 goes in the front.

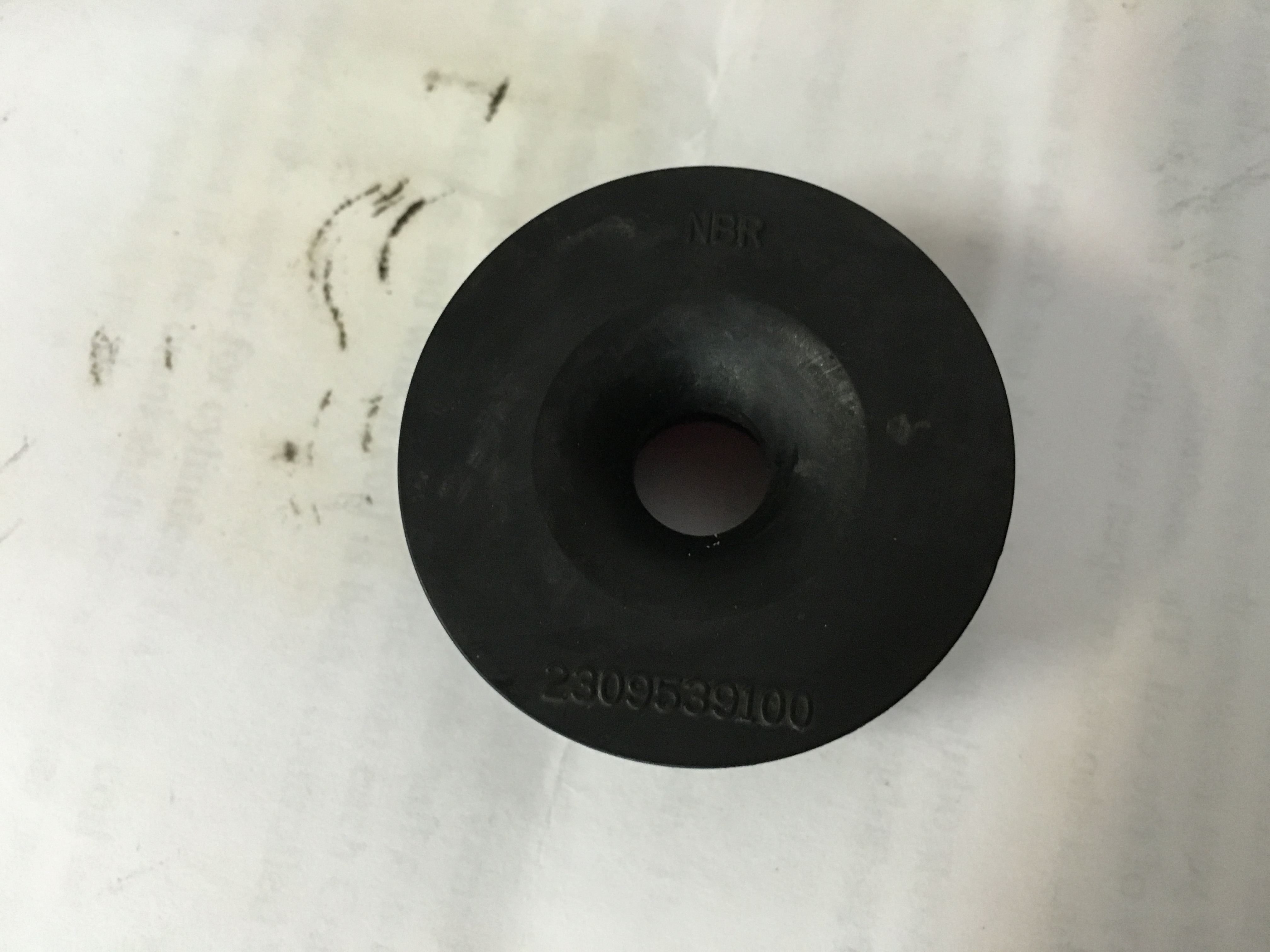

What about the part number molded into the part?

FWIW, I just put a piece of carpet padding on the front stud.

Your housing is different from either of mine. Mine had 2 on the back and a leg in the front with the grommet that got destroyed the first time I took it off.

Do the smaller ones fall out of the holes even after the stud is in them? As I recall that expands them considerably.
