Independent Rear Suspension
Figured I'd show off my suspension setup.
I've spent the last couple years trying to get my HHR as low as possible. After multiple variations of suspension setups using the factory 2-link and even a straight axle, I decided on an independent rear suspension. This ended up being way more work than I expected, but totally worth it. Anyway here's some pics of the build.

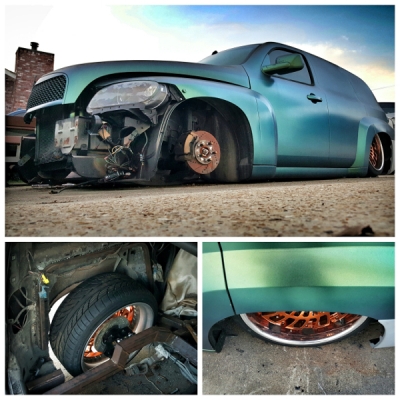

First: how it looks now, with the rear layed out. Next step is to drop the front a few more inches.

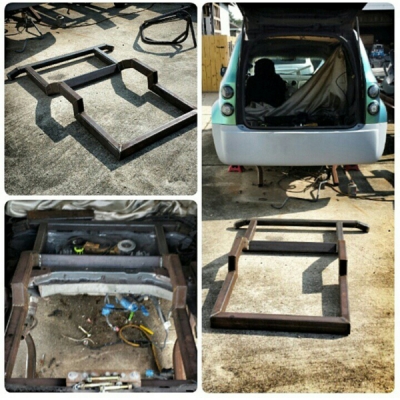

The rear frame fabbed up, made to weld in to as many points of the uni-body as possible
As it sat, with the rear floor cut out and the frame welded in
The lower subframe that the suspension attaches to, and the hub plates for the disc brake conversion

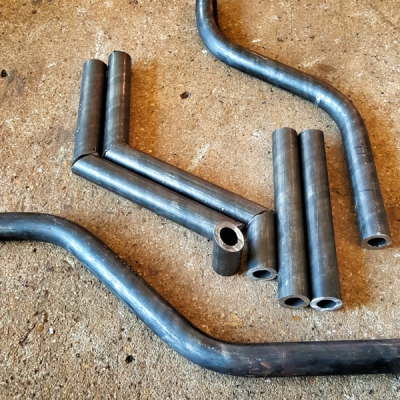

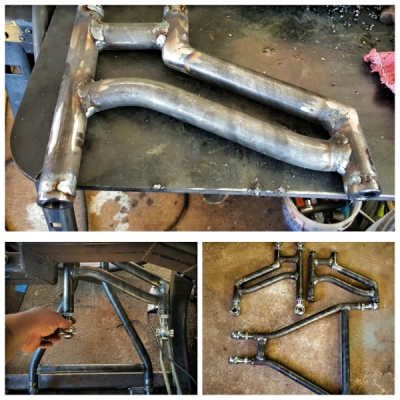

DOM tubing for the upper control arms
The upper control arms mocked up

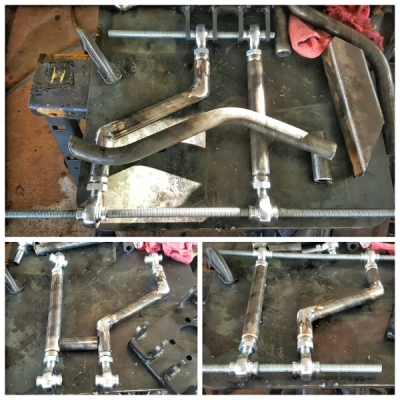

Welded the uppers, and installed adjustable heim joints

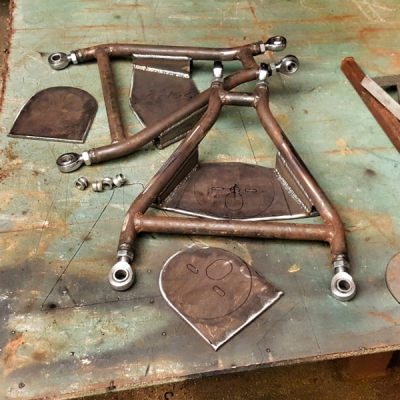

Lower control arms with recessed bagmounts

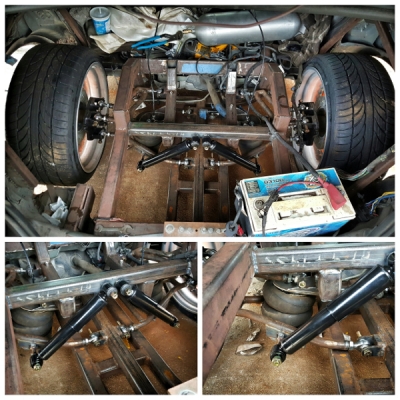

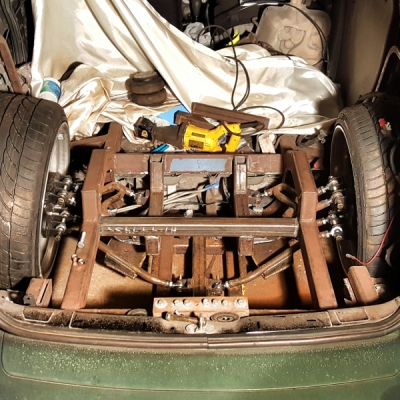

Everything mocked up
Bags installed and wheels on, finally off the ground

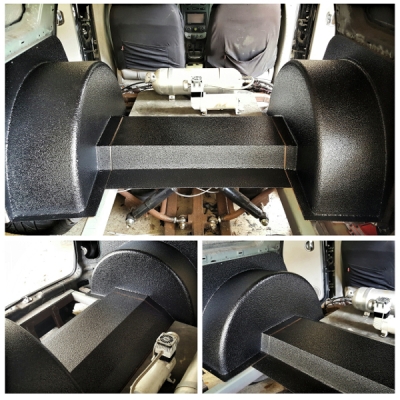

Sheet metal wheel tubs and notch cover , topped off with some spray on bed liner
I've spent the last couple years trying to get my HHR as low as possible. After multiple variations of suspension setups using the factory 2-link and even a straight axle, I decided on an independent rear suspension. This ended up being way more work than I expected, but totally worth it. Anyway here's some pics of the build.
First: how it looks now, with the rear layed out. Next step is to drop the front a few more inches.
The rear frame fabbed up, made to weld in to as many points of the uni-body as possible
As it sat, with the rear floor cut out and the frame welded in

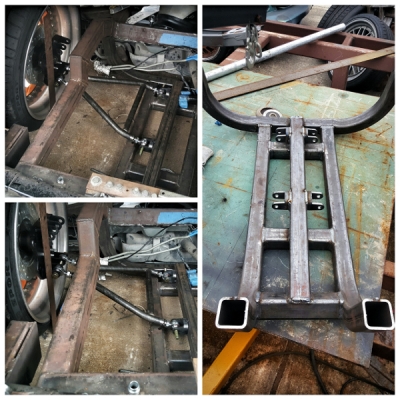

The lower subframe that the suspension attaches to, and the hub plates for the disc brake conversion
