who has a pic of the airbox inside?

Thread Tools

Search this Thread

Old Feb 17, 2008 | 10:39 AM
  #1
HHR_SS_Rocks's Avatar
Thread Starter
Senior Member

Joined: 08-01-2007
Posts: 106
From: CT
who has a pic of the airbox inside?

Havent cracked mine open yet, anyone?
Old Feb 17, 2008 | 12:25 PM
  #2
GTOMIKE's Avatar
Senior Member

Joined: 06-27-2006
Posts: 732
From: Kingsville On

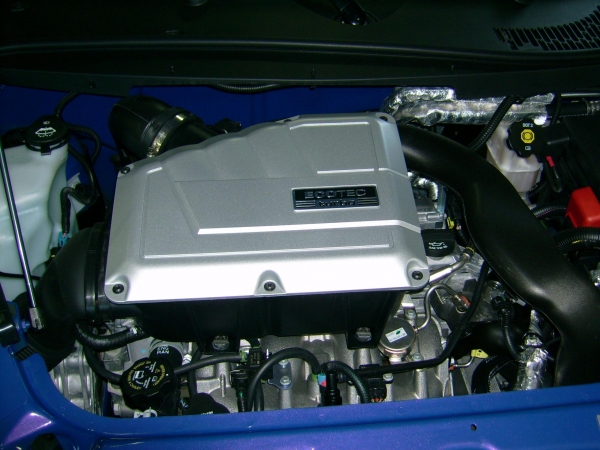

This is what I found in mine
Attached Images
Old Feb 17, 2008 | 01:32 PM
  #3
1Panel2NV's Avatar
Senior Member

Joined: 06-16-2007
Posts: 1,259
From: Illinois
It's a pretty complicated process from what I understand. That's probably why no one has done it yet...
Old Feb 17, 2008 | 01:56 PM
  #4
MOTRV8D's Avatar
Senior Member

Joined: 10-14-2006
Posts: 1,186
From: So. Cal
And this is what's really in the ECM...

Old Feb 17, 2008 | 07:12 PM
  #5
gcsd3742's Avatar
Senior Member

Joined: 11-07-2007
Posts: 1,613
From: Southside of Houston Texas
in side i a small cone shaped filter....the air is pulled in thru the flex tube to the left of the box from inside the fender well into a cone shaped filter thats yellow in color then into the turbo im in the process now of finding 2 45's or a 90 so i can get rid of the box and plumb in a CAI this cone is 4" long all that wasted box for a 4" cone what a waste
Old Feb 17, 2008 | 07:55 PM
  #6
HHR_SS_Rocks's Avatar
Thread Starter
Senior Member

Joined: 08-01-2007
Posts: 106
From: CT
Originally Posted by gcsd3742
in side i a small cone shaped filter....the air is pulled in thru the flex tube to the left of the box from inside the fender well into a cone shaped filter thats yellow in color then into the turbo im in the process now of finding 2 45's or a 90 so i can get rid of the box and plumb in a CAI this cone is 4" long all that wasted box for a 4" cone what a waste
thanks for the honest answer, but the gerbil, is that the clicking?
LOL!
I think a nice ram air box with a sloped scoop leading to the front is the way to go, and maybe a nice blackwing filter like the vette uses...oval and about 10" wide 4" tall
Old Feb 18, 2008 | 02:25 AM
  #7
white heat's Avatar
Senior Member

Joined: 01-22-2008
Posts: 158
From: Oregon
Originally Posted by gcsd3742
in side i a small cone shaped filter....the air is pulled in thru the flex tube to the left of the box from inside the fender well into a cone shaped filter thats yellow in color then into the turbo im in the process now of finding 2 45's or a 90 so i can get rid of the box and plumb in a CAI this cone is 4" long all that wasted box for a 4" cone what a waste
That's because it's an enclosed system that sucks only cold air. If you care about performance you don't want to suck hot air from an open intake. I know a guy who dynoed and lost 19 lbs/ft of torque with an open intake vs the factory enclosed system. Then again, if you want something that looks pretty and full race and don't mind some performance loss then go for it.
Old Feb 18, 2008 | 06:53 AM
  #8
Offy's Avatar
Senior Member

Joined: 10-19-2007
Posts: 196
From: Temple Terrace, FL
Not Difficult

Originally Posted by 1Panel2NV
It's a pretty complicated process from what I understand. That's probably why no one has done it yet...
It is just a series of screws and clamps, not difficult at all.
Old Feb 18, 2008 | 08:54 AM
  #9
Hellraisehr's Avatar
Member

Joined: 10-30-2006
Posts: 51
From: TONAWANDA,N.Y
2 45;s and a 90

http://www.spectreperformance.com/#HOMEyou can find everything you need here

Last edited by Hellraisehr; Feb 18, 2008 at 08:58 AM. Reason: http://www.spectreperformance.com/#HOME
Old Feb 18, 2008 | 05:46 PM
  #10
1Panel2NV's Avatar
Senior Member

Joined: 06-16-2007
Posts: 1,259
From: Illinois
Originally Posted by Offy
It is just a series of screws and clamps, not difficult at all.
A gift from me to you.

Name:  sarcasm_detector.jpg
Views: 98
Size:  10.4 KB
