McB_HHR

Looks like I missed most of the party.

Purchased a 2011 LT Thursday and appreciate the info found here so far. Still getting familiar with it but so far so good.

Oldblue

Welcome to the site! Enjoy that new to you HHR!
Tell us more about it, like is it a 1 or 2 LT, FE 1 or 3 suspension?
Colour? Leather? Wheels? We just gotta know!

Oh! And we like pictures!

McB_HHR

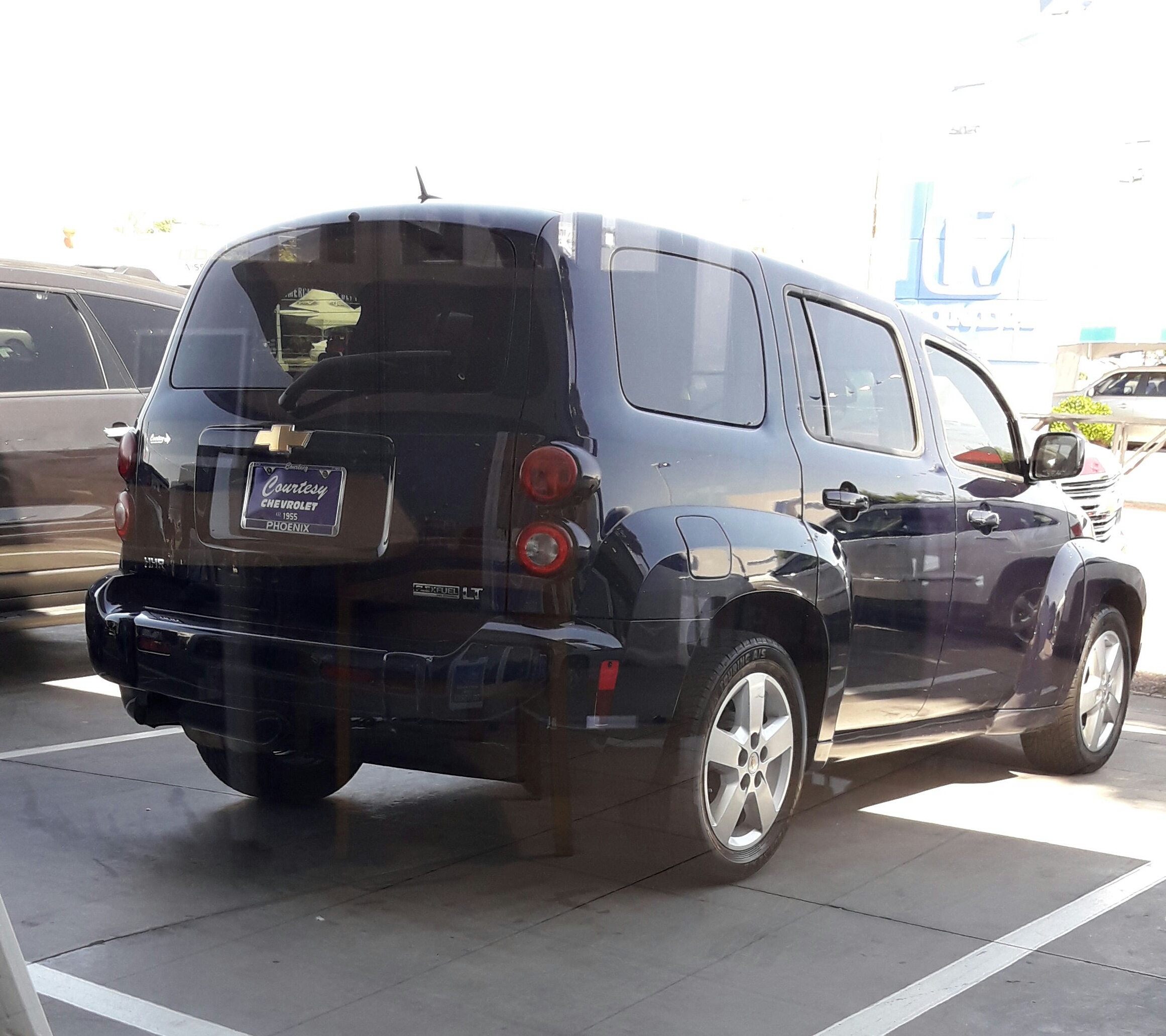

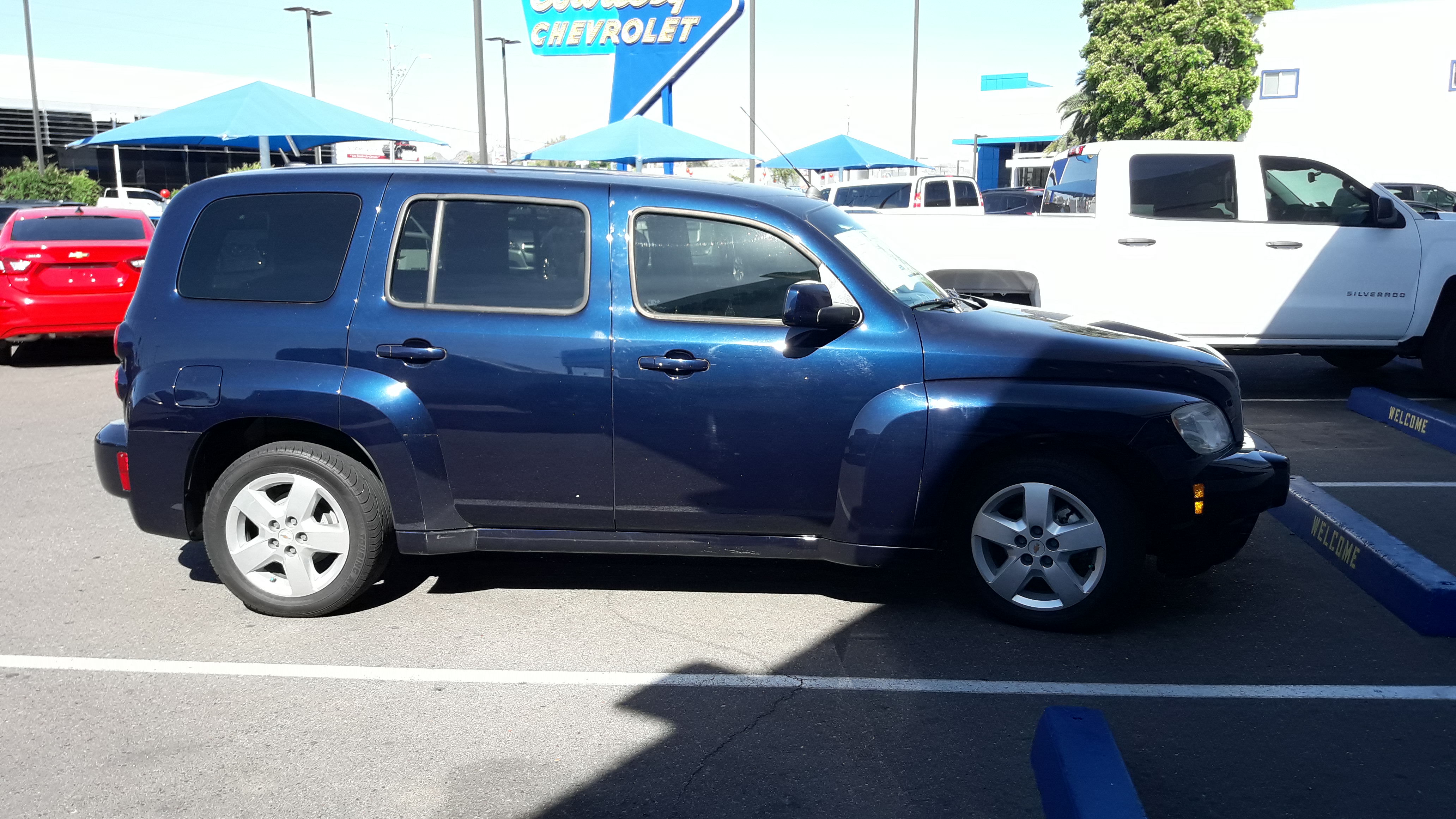

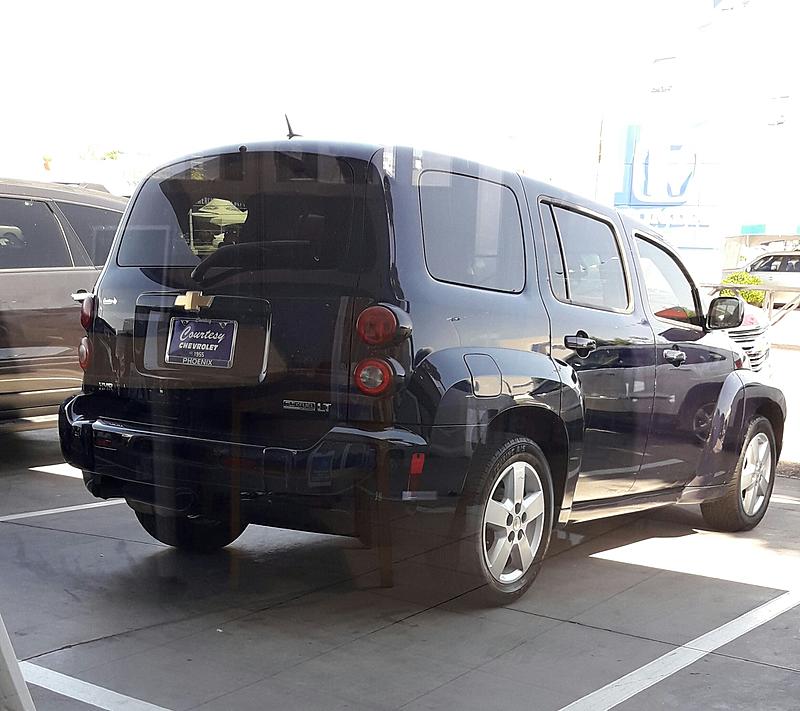

This would be a 1LT with Imperial Blue Metallic. Given the 1LT and 2.2Eco I assume this to be the FE1 suspension.

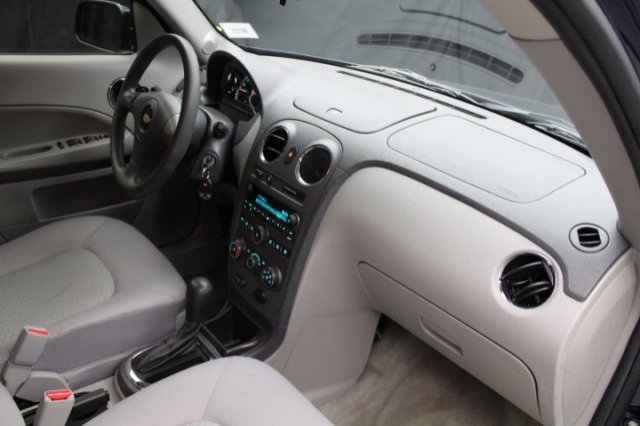

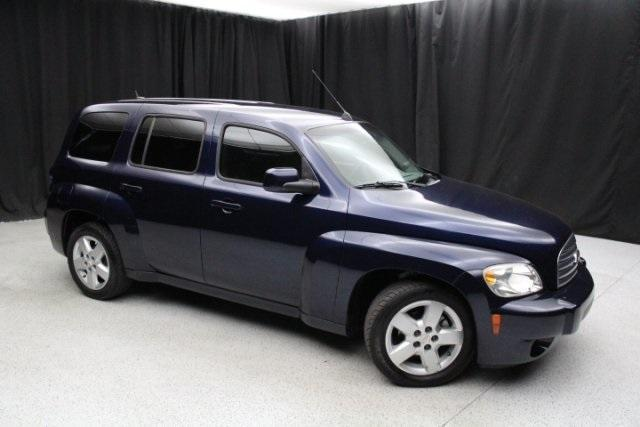

Its 129K miles but doesn't really look like it. You can tell which images were taken by the dealer though. lol.

Oldblue

IBM hhmm, I love that colour!!
Yeah , the 1LT's didn't get the FE3 package, I was just wondering seeing as it's an end of the build 2011, check the glove box door , you might have got the better suspension!

donbrew

Welcome!

Don't agonize over FE1/FE3 they really are not that much different and replacement parts are all the same, usually FE3. The parts are interchangeable.

FE5 is different, but not interchangeable.

Oldblue

I was more interested to see what GM gave out at the end of the run!
OEM parts are scarce, aftermarket struts and shocks are FE3 equivalent and even quick struts the springs are FE3.

McB_HHR

FE1, confirmed by sticker in glovebox

donbrew

FE1 is "soft ride" or "comfort ride" FE3 is "sport", but I'll be darned if I could ever tell the difference.

Oldblue

I got my answer, GM wasn't generous and gave out the FE3 setup! I didn't like the FE 1 so I went with KYB's and Canucks!

McB_HHR

For archives...

Build date: September 29, 2010
RPO's: 49

ADM - Restraint System Seat, Inflatable, Driver & Pass, Dual Stage
AJ6 - Adjuster - Seat, Power, 6-Way, Vert, Driver
AP3 - Lock Control, Entry - Remote, Keyless Entry, Start
AR9 - Seat - Front Bucket, Deluxe
ASF - Restraint Roof Side, Left and Right, Inflatable
AT8 - Restraint Provisions - Child, Rear Seat, Rear Facing
AXP - Vehicle Type - Multi-Purpose Passenger Vehicle
B34 - Covering Frt Floor Mats, Carpeted Insert
B35 - Covering Rear Floor Mats, Carpeted Insert
B36 - Covering - Floor Mat, Luggage Compartment
C2Y - GVW Rating - 4,240 Lbs
C67 - HVAC System - Air Conditioner Front, Electronic Controls
DG7 - Mirror Outside - Left and Right , Remote Control, Electric, Color
EF7 - Country United States of America (USA)
FE1 - Suspension System - Soft Ride
FE9 - Certification - Emission, Federal
FY1 - Ratio - Transaxle Final Drive 3.63
GAP - Primary Color Exterior, Imperial Blue Met (G) 403P
IPB - Trim - Interior Design (PB)
JJD - I/P Subassembly Not Installed (Modular Optimization Method Only)
JL4 - Control - Active Brake
JM4 - Brake System - Power, Front Disc, Rear Drum, Cast Iron, Antilock, Front and Rear Wheel
LE8 - Flexible Fuel, (Gas/Alc), 4 Cyl, 2.2L, Mfi, Vvt, Alum, GM
MN5 - Transmission - Automatic 4 Speed, Hmd, 4T45-E
MX0 Merchandised Trans - Automatic Provisions, O/D
NT7 - Emission System - Federal, Tier 2
NW9 - Traction Control - Electronic
NZ6 - Wheel - 16 X 6.5, Steel, High Vent
N24 - Steering Wheel - Plastic, 3 Spokes
QDB - Tire All - P215/55R16-91S Bw R/Pe St Tl Al2
R9N - PROCESSING CODE - SEAT
SAL - Plant Code - Ramos Arizpe, Mexico
SLM - Stock Order
UD0 - Sensor Indicator Inflatable Restraint, Frt Rh/Child Presence Detector
UE1 - Communication System - Vehicle, G.P.S. 1
UJM - Tire Press Indicator Manual Learn
US8 - Radio - AM/FM Stereo, Seek/Scan, CD, Auto Tone, Clock, ETR, MP3, RDS
UW5 - Speaker System - 6, Base
U2K - Digital Audio System - S-Band
VT7 - Owners Manual - English Language
V8D - Vehicle Statement US
ZAF - Tire Spare Spare, Compact Size, 15"
ZAG - Wheel Spare Spare, Compact Size, 15X4, 5 Lugs"
1LT - Package - LT Option 1
1SZ - OPTION PKG DISCOUNT
14B - Trim Combination - Cloth, Gray (B) (97)
14I - Interior Trim Gray
6AE - FRONT SPRING
7AE - REAR SPRING
