2006 fuel preasure regulator
01-05-2013, 08:20 PM
#2
Senior Member
Join Date: 09-19-2011
Location: myrtle beach, sc
Posts: 333
01-08-2013, 09:33 AM
#5
Senior Member
Join Date: 06-26-2006
Location: San Bernardino, California
Posts: 1,876
01-08-2013, 07:04 PM
#6
Senior Member
Join Date: 09-19-2011
Location: myrtle beach, sc
Posts: 333
ds/db.....try this site
http://www.powerlibrary.net/remote/r...p?ID=meadville
use this barcode
pl249412345678
click on auto repair reference center
sorry bout the confusion
http://www.powerlibrary.net/remote/r...p?ID=meadville
use this barcode
pl249412345678
click on auto repair reference center
sorry bout the confusion
01-08-2013, 09:16 PM
#7
Senior Member
Join Date: 06-26-2006
Location: San Bernardino, California
Posts: 1,876
Thanks but I wasn't confused, I was just making an observation. Those that might have needed the info couldn't access it without a password. I don't need them as I have a pretty good collection of service manuals for the vehicles I work on.
01-09-2013, 08:31 AM
#9
Senior Member
Join Date: 06-26-2006
Location: San Bernardino, California
Posts: 1,876
According to the manual: "The fuel pressure regulator is a part of the fuel pump module...". So it's located in the gas tank. Here's the exact quote:
The fuel system is a returnless on-demand design. The fuel pressure regulator is a part of the fuel pump module, eliminating the need for a return pipe from the engine. A returnless fuel system reduces the internal temperature of the fuel tank by not returning hot fuel from the engine to the fuel tank. Reducing the internal temperature of the fuel tank results in lower evaporative emissions.
An electric turbine style fuel pump attaches to the fuel pump module inside the fuel tank. The fuel pump supplies high pressure fuel through the fuel feed pipe to the fuel injection system. The fuel pump provides fuel at a higher rate of flow than is needed by the fuel injection system. The fuel pressure regulator, a part of the fuel pump module, maintains the correct fuel pressure to the fuel injection system. The fuel pump module contains a reverse flow check valve. The check valve and the fuel pressure regulator maintain fuel pressure in the fuel feed pipe and the fuel rail in order to prevent long cranking times.
An electric turbine style fuel pump attaches to the fuel pump module inside the fuel tank. The fuel pump supplies high pressure fuel through the fuel feed pipe to the fuel injection system. The fuel pump provides fuel at a higher rate of flow than is needed by the fuel injection system. The fuel pressure regulator, a part of the fuel pump module, maintains the correct fuel pressure to the fuel injection system. The fuel pump module contains a reverse flow check valve. The check valve and the fuel pressure regulator maintain fuel pressure in the fuel feed pipe and the fuel rail in order to prevent long cranking times.
01-09-2013, 08:47 AM
#10
Founding Member
Join Date: 11-23-2007
Location: Texas
Posts: 8,210

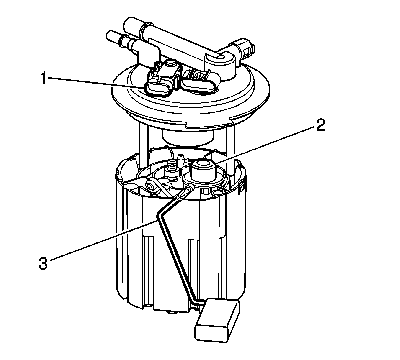

The fuel pump module consists of the following major components:
• The fill limit vent valve
• The fuel level sensor (3)
• The fuel tank pressure (FTP) sensor (1)
• The fuel pump
• The fuel strainer
• The fuel pressure regulator (2)
