Coolant temp sensor wiring
#1
Coolant temp sensor wiring
Trying to diagnose a temp sensor issue, P0118 code with .1-.2 volts at terminal. Need to test for a short or open circuit .What are the pin locations at the ECM for the sensor wires?
Any help would be appreciated. I had replaced t-stat and sensor twice since this started(before an ECM replacement which cleared up other issues). From what I can find the sensor wires are not on
the 58 pin connector on the ECM.
Any help would be appreciated. I had replaced t-stat and sensor twice since this started(before an ECM replacement which cleared up other issues). From what I can find the sensor wires are not on
the 58 pin connector on the ECM.
#3
signal/5 volt is the yellow wire on pin #50 and tan on #61 is low ref. That probably explains the odd looking voltage readings.

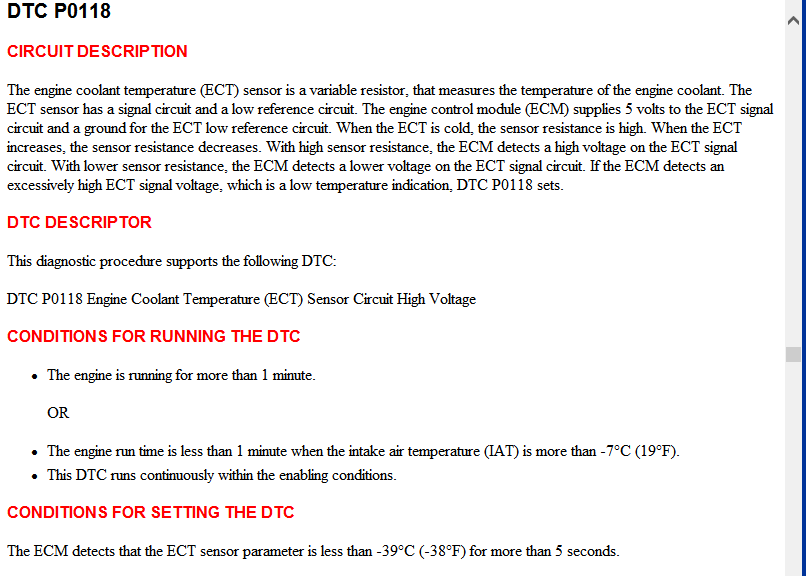

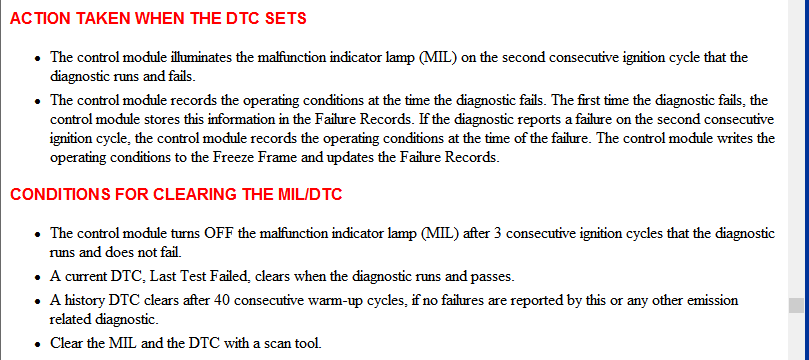

P0118 is "ECT sensor circuit HIGH voltage". Which means a low temp reading.
P0118 is "ECT sensor circuit HIGH voltage". Which means a low temp reading.
#4
Maybe a good burp will help!
https://www.chevyhhr.net/forums/how-...-system-60614/
possibly an air pocket in the cooling system
https://www.chevyhhr.net/forums/how-...-system-60614/
possibly an air pocket in the cooling system
#6
I put in a Mahle t-stat. OBD2 codes remain P0118 after code is cleared and sensor disconnected and cleared then after connected. Low voltage at the terminal suggest to me that there is a break or short in the wiring.
#10
Don, I'm not sure what you mean by invisible. I read your reply and have checked and reset the code several times.
The code always comes back the same P0118. It will do this with or without being connected. There is minimal voltage at the pigtail(0.1-.02 volts)
I would like to check the connector pins to the pigtails to see if there is an open or shorted condition in the wiring. At first, this problem was intermittent , and now it is constant.
Would you happen to have a picture or diagram of the pin layout or location as there is only one number(53) on the upper ECM plug. Trying to locate pin 50 and 61.
All help is appreciated.
The code always comes back the same P0118. It will do this with or without being connected. There is minimal voltage at the pigtail(0.1-.02 volts)
I would like to check the connector pins to the pigtails to see if there is an open or shorted condition in the wiring. At first, this problem was intermittent , and now it is constant.
Would you happen to have a picture or diagram of the pin layout or location as there is only one number(53) on the upper ECM plug. Trying to locate pin 50 and 61.
All help is appreciated.
