Stock Radio Pinouts
11-11-2008, 07:58 PM
#4
Senior Member
Thread Starter
Join Date: 09-07-2007
Location: Costa Mesa, Ca
Posts: 405
UW5 - 6 SPEAKER SYSTEM
U1C - AM/FM STEREO RADIO/COMPACT DISC ELECTRONICALLY TUNED AM/FM STEREO RADIO W/SEEK,TONE SELECT, COMPACT DISC PLAYER, DIGITAL CLOCK AND 4 SPEAKERS
11-13-2008, 05:42 PM
#5
Founding Member
Join Date: 11-23-2007
Location: Texas
Posts: 8,210
Here are both connectors for the UW5 radio.

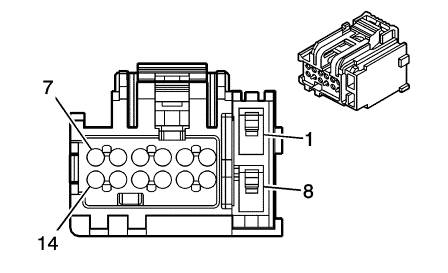

Radio C1 (UW5)
Pin-Wire-Color-Circuit No.-Function
1-RD/WH-1140-Battery Positive Voltage
2-GY-8-Instrument Panel Lamp Dimmer Switch Signal
3----Not Used
4-DGN-117-Right Front Speaker Output (-)
5-LGN-200-Right Front Speaker Output (+)
6-GY-118-Left Front Speaker Output (-)
7-TN-201-Left Front Speaker Output (+)
8-BK/WH-651-Ground
9-DGN-5060-Low Speed GMLAN Serial Data (Early Production)
D-GN/WH-5060-Low Speed GMLAN Serial Data (Late Production)
10---- Not Used
11-DBU-1796-Steering Wheel Control Signal (UK3)
12-14----Not Used

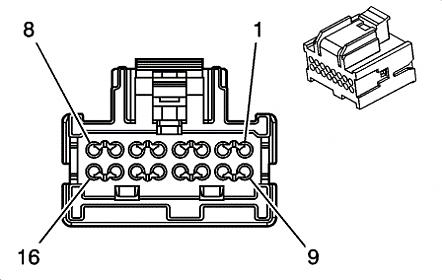

Radio C2 (UW5)
Pin-Wire Color-Circuit No.-Function
1-BN/WH 367-Remote Radio Left Audio Signal (+) (U2K)
2-DGN/WH-368-Remote Radio Right Audio Signal (+) (U2K)
3-PK-314-Radio On Signal
4-DBU-46-Right Rear Speaker Output (+)
5-LBU-115-Right Rear Speaker Output (-)
6-BN-199-Left Rear Speaker Output (+)
7-YE-116-Left Rear Speaker Output (-)
8-PK/BK-2062-Cellular Telephone Voice Signal (UE1)
9-TN/WH-372-Audio Common (U2K)
10-13----Not Used
14-WH/BK-644-10 Volt Reference (UK3)
15----Not Used
16-OG/BK-2061-Cellular Telephone Voice Low Reference (UE1)
Radio C1 (UW5)
Pin-Wire-Color-Circuit No.-Function
1-RD/WH-1140-Battery Positive Voltage
2-GY-8-Instrument Panel Lamp Dimmer Switch Signal
3----Not Used
4-DGN-117-Right Front Speaker Output (-)
5-LGN-200-Right Front Speaker Output (+)
6-GY-118-Left Front Speaker Output (-)
7-TN-201-Left Front Speaker Output (+)
8-BK/WH-651-Ground
9-DGN-5060-Low Speed GMLAN Serial Data (Early Production)
D-GN/WH-5060-Low Speed GMLAN Serial Data (Late Production)
10---- Not Used
11-DBU-1796-Steering Wheel Control Signal (UK3)
12-14----Not Used
Radio C2 (UW5)
Pin-Wire Color-Circuit No.-Function
1-BN/WH 367-Remote Radio Left Audio Signal (+) (U2K)
2-DGN/WH-368-Remote Radio Right Audio Signal (+) (U2K)
3-PK-314-Radio On Signal
4-DBU-46-Right Rear Speaker Output (+)
5-LBU-115-Right Rear Speaker Output (-)
6-BN-199-Left Rear Speaker Output (+)
7-YE-116-Left Rear Speaker Output (-)
8-PK/BK-2062-Cellular Telephone Voice Signal (UE1)
9-TN/WH-372-Audio Common (U2K)
10-13----Not Used
14-WH/BK-644-10 Volt Reference (UK3)
15----Not Used
16-OG/BK-2061-Cellular Telephone Voice Low Reference (UE1)
11-13-2008, 11:09 PM
#6
Senior Member
Thread Starter
Join Date: 09-07-2007
Location: Costa Mesa, Ca
Posts: 405
Hmmm
1-BN/WH 367-Remote Radio Left Audio Signal (+) (U2K)
2-DGN/WH-368-Remote Radio Right Audio Signal (+) (U2K)
That sounds like an input to the stereo, I guess the common/ground is the third line... So the base radio does have inputs on the back for another device.
I feel the need to tinker...
1-BN/WH 367-Remote Radio Left Audio Signal (+) (U2K)
2-DGN/WH-368-Remote Radio Right Audio Signal (+) (U2K)
That sounds like an input to the stereo, I guess the common/ground is the third line... So the base radio does have inputs on the back for another device.
I feel the need to tinker...
