OBD II port

Does anyone have the wiring information on the OBD II port? My wife's 2009 has no power coming to the port. The scanner will not turn on. I checked the scanner on 10 and it turned on correctly. The wiring diagrams in the Haynes manual does not have a complete diagram, and none of the diagrams that they have show the OBD II port. It could be just a fuse, any ideas?
Ron S is offline   Reply With Quote
Old 07-16-2017, 11:15 AM   #2
Moderator

Oldblue's Avatar

Join Date: 10-13-2011
Location: Welland,Ont Canada
Posts: 13,978

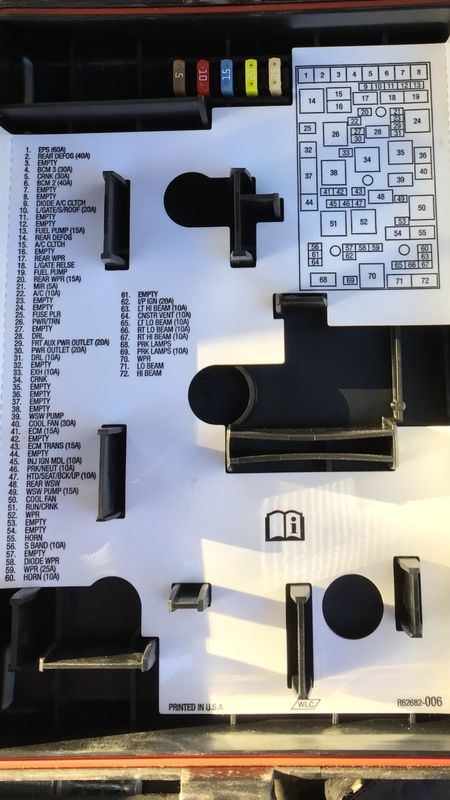

The same fuse for the power outlet, #29

https://www.chevyhhr.net/forums/prob...working-25864/
Attached Thumbnails
OBD II port-img_0627.png

Last edited by Oldblue; 07-16-2017 at 01:16 PM.
Oldblue is offline   Reply With Quote
Old 07-16-2017, 12:00 PM   #3
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 12,491
Somebody put a cigar lighter element in the 12V accessory outlet and blew the fuse.
donbrew is offline   Reply With Quote
Old 07-16-2017, 01:03 PM   #4
Premium Member

firemangeorge's Avatar

Join Date: 12-06-2009
Location: Fairhope, Alabama
Posts: 7,352

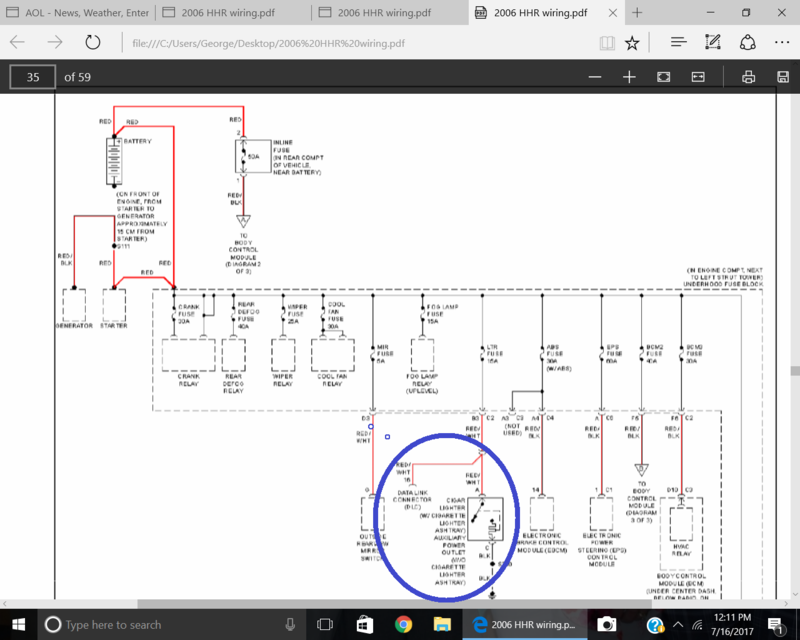

This is all I've got.
OBD II port-screenshot-45-.png
firemangeorge is offline   Reply With Quote
Old 07-17-2017, 06:21 AM   #5
Senior Member
Thread Starter

Join Date: 12-02-2010
Location: Roanoke Va
Posts: 656
Thanks all. A blown fuse. The only things that has ever been plugged in to the socket are a cell phone charger, GPS and a small rechargeable flashlight that stays in all the time. The flashlight has been in for several years as has the one in my car. I don't know what caused it to blow. I swapped 29 and 30, I will pick up some spares today. In the 7 years on the wife's and almost 7 years on mine this is the first blown fuse. I have some blade fuses around here some where but I have no idea where, the best way to find them is to buy some more.
Thanks all
Ron S is offline   Reply With Quote
Old 07-17-2017, 10:13 AM   #6
Moderator

RJ_RS_SS_350's Avatar

Join Date: 05-01-2014
Location: California
Posts: 1,791
If this is the first blown fuse, there should be spares in at least one of the fuseboxes. I wonder how long it's been since your flashlight was charged(since the fuse blew).
