Home >> Chevy Truck >> 2008 >> HHR L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Service and Repair >> Air Temperature Actuator Replacement

Air Temperature Actuator Replacement

Air Temperature Actuator Replacement

Removal Procedure

1. Remove the fuse labeled HVAC CTRL (BATT).
2. Remove the knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Service and Repair) .
3. Remove the instrument panel (I/P) tie bar. Refer to Instrument Panel Tie Bar Replacement (Service and Repair) .

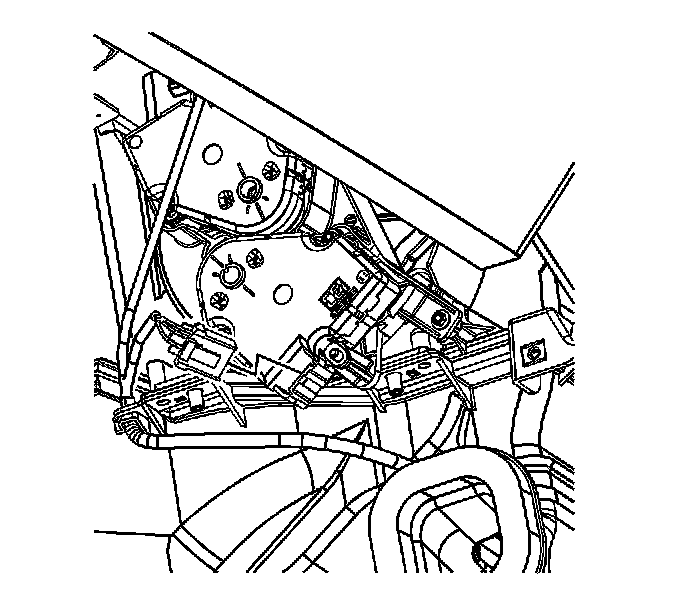

4. Disconnect the air temperature actuator electrical connector.

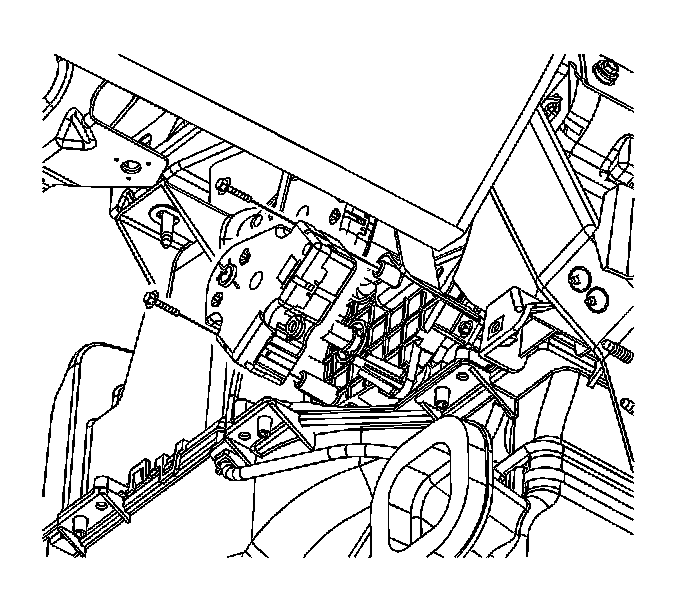

5. Remove the air temperature actuator screws.
6. Remove the air temperature actuator.



Installation Procedure






Important: The key should be in the OFF position when connecting the electrical connectors to ensure proper calibration.


1. Install the air temperature actuator.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the air temperature actuator screws.

Tighten the screws to 2.2 N.m (19 lb in).





3. Install the air temperature actuator electrical connector.
4. Install the I/P tie bar. Refer to Instrument Panel Tie Bar Replacement (Service and Repair) .
5. Install the knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Service and Repair) .
6. Install the fuse labeled HVAC CTRL (BATT).

Important: Do not adjust any controls on the HVAC control assembly while the HVAC control assembly and actuators are calibrating. If interrupted improper HVAC performance will result.


7. Start the engine and let run for one minute.
