Custom Aluminum Roof Rack
Hello All...

The most extensive modification I've made to my 2010 HHR Panel, has been the addition of a full length, custom bent & fab'ed, oval tube aluminum roof rack. This vehicle was purchased, new in February of 2011, and immediately had the interior headliner removed to allow access to the roof structure for a 'thru-bolted' roof rack design. Note: The roof rack is attached to the Roof Bow Structure, thru-bolted & shimmed to prevent roof panel deflection and then sealed with 3M 5200 Marine Adhesive to prevent water leaks. It's totally stout & structual to the car!

The primary vison for the purchase of this vehicle was to be a cool looking, unique, canoe/kayak transporter while (hopefully) getting decent gas mileage... It's getting closer to the mission all the time.

Here's some pictures of the fab & installation of the roof rack...

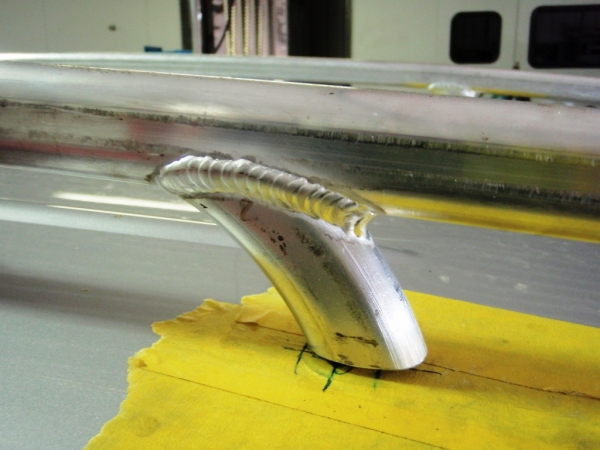

Mounting Surface & Thru Bolt Stud:

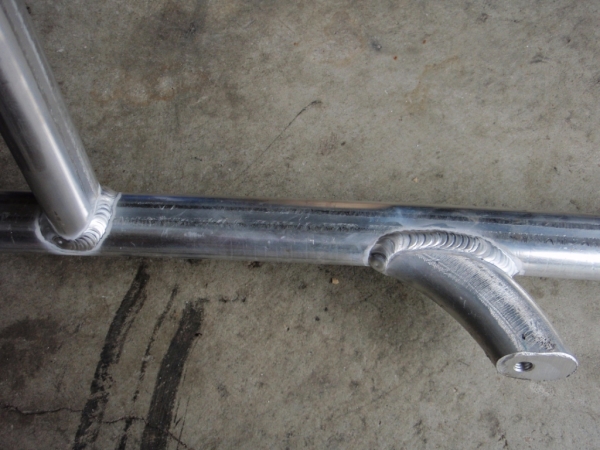

Beautiful Welds & Tapped Hole for mounting stud:

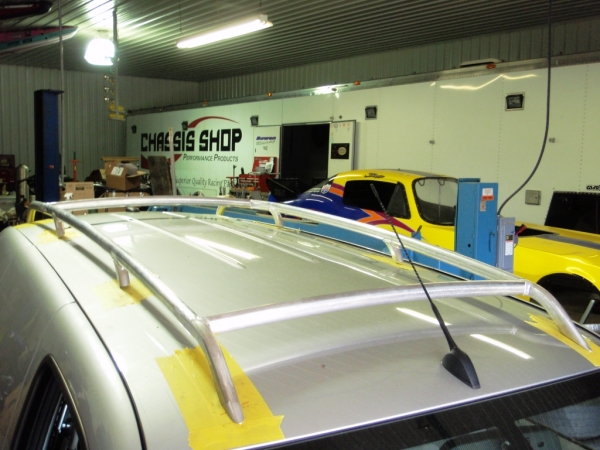

Rough Installation to Roof Top:

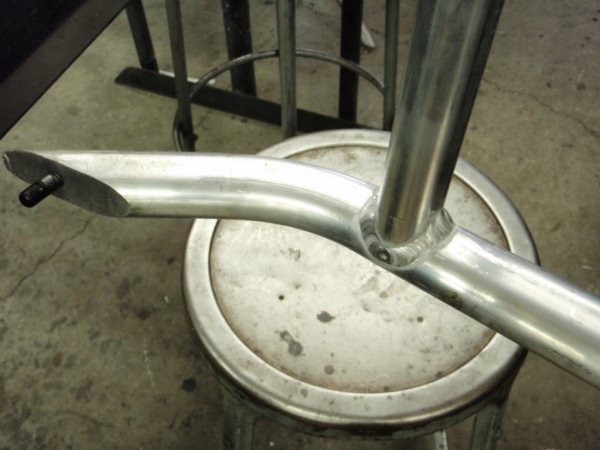

Tweaking & Fitting before Powdercoating:


After Powdercoating & Final Installation:


Ready to Roll:


Comments &/or questions? Lay it on me...

KEENO
