Has anyone done a layout of the spare fuses?
ie: which are bat/acc/ignition?
Looking for a ACC and Ignition. I poked about and not sure I believe my cursory results that BAT and ACC are there but no Ignition. Need to run a few relays.
2006 HHR LT.
ie: which are bat/acc/ignition?
Looking for a ACC and Ignition. I poked about and not sure I believe my cursory results that BAT and ACC are there but no Ignition. Need to run a few relays.
2006 HHR LT.
#2
Are you looking to add a circuit?
Do you mean more information than your Owner Manual provides?
If you have a VOM or a test light it would be easy to probe the "spare" fuse spaces.
I am pretty sure that the RAP relay feeds the 3 spare fuses 12,14 &21; that would make them ign.
You could add a few more words to make it easier to answer.
Does this help?
Do you mean more information than your Owner Manual provides?
If you have a VOM or a test light it would be easy to probe the "spare" fuse spaces.
I am pretty sure that the RAP relay feeds the 3 spare fuses 12,14 &21; that would make them ign.
You could add a few more words to make it easier to answer.
Does this help?
Last edited by donbrew; 03-30-2017 at 04:36 PM.
#3
Thanks.
I do have that. And yes I'm adding in circuits (have 200w of solar panel and a pair of deep cycle batteries)
But that legend doesn't show if the spares are BAT, ACC or IGNITION. I poked a bit and only saw that the spares were BAT and ACC. The fat pink cable coming into the face of the fuse panel is IGN, but looking for a more elegant and safer tap.
I need to control a relay for when the engine is on (IGN), that the house and starter batteries are not 'charged' by both the alternator and the panels at the same time (its not a good idea to have 2 chargers on the same batteries(s) at the same time) but use the NC contact to allow the panels to also charge the starter battery when engine is off. I do have an battery isolator relay, but it doesn't work in the manner I described, just there to prevent draining down the starter battery.
And a ACC fired relay to power the HAM radio (and a few other items)
I do have that. And yes I'm adding in circuits (have 200w of solar panel and a pair of deep cycle batteries)
But that legend doesn't show if the spares are BAT, ACC or IGNITION. I poked a bit and only saw that the spares were BAT and ACC. The fat pink cable coming into the face of the fuse panel is IGN, but looking for a more elegant and safer tap.
I need to control a relay for when the engine is on (IGN), that the house and starter batteries are not 'charged' by both the alternator and the panels at the same time (its not a good idea to have 2 chargers on the same batteries(s) at the same time) but use the NC contact to allow the panels to also charge the starter battery when engine is off. I do have an battery isolator relay, but it doesn't work in the manner I described, just there to prevent draining down the starter battery.
And a ACC fired relay to power the HAM radio (and a few other items)
#5
You have my system backwards. I'm blocking the alternator from charging the house batteries, but allowing the solar to charge the starter battery. I'm just avoiding 2 charging system on same battery at same time.
#6
Might be easier to go underhood. The inside fuse box is actually the BCM.
If you need wiring diagrams let me know, way to complicated to post.
But you do want the alternator to continue functioning?
If you need wiring diagrams let me know, way to complicated to post.
But you do want the alternator to continue functioning?
#7
Oh, OK, and you need to charge the starter battery because you are running the HAM?
#9
Don't they make an isolator for just that purpose?

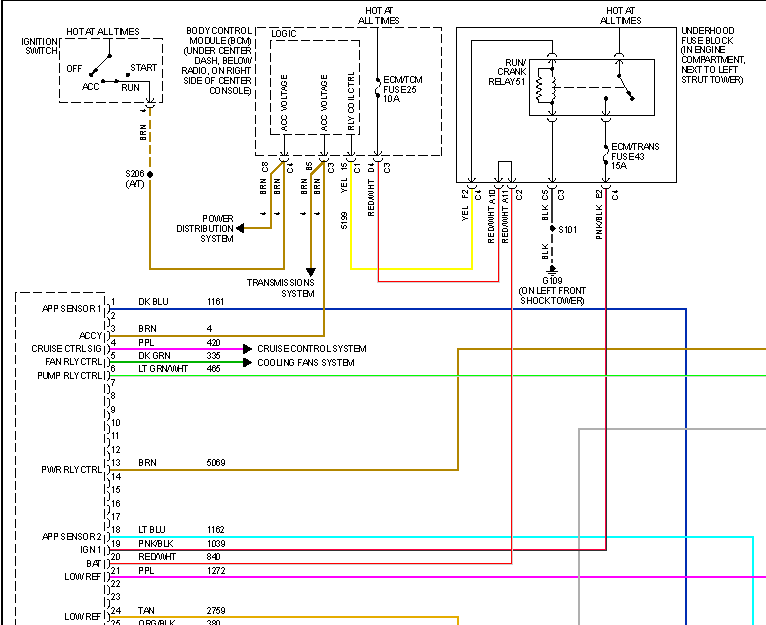

Here is the run/crank part including signals and power.
Attachment 21257
Here is the run/crank part including signals and power.
Attachment 21257
With the addition of solar, I have two charging sources. Not good to wire them in parallel. and used at same time on all batteries.
But thanks for the diagram! Will pour into it and see what I see. I'm just trying NOT to drill a hole in the firewall. They never seem to come out on the other side where you expect/want.
