Fog light wiring using passenger side empty slot

Old 12-04-2018, 01:01 PM
  #1
New Member
Thread Starter

Join Date: 12-17-2010
Location: LBC**562**
Posts: 27
Fog light wiring using passenger side empty slot

Hello All,

Previous owner had installed aftermarket fog lights but had positive wire tied on the low beam fuse which I removed. I want to make it a more proper install but I wanted to know if I added a relay to the wiring, do I need to connect directly to the battery or can I get a 12v source from the empty slot on the passenger side fuse box. I wanted to also use a fuse tap to do a cleaner install.

I am trying to avoid high voltage running to the on/off switch installed in the cabin.


BERNS is offline
Old 12-04-2018, 01:05 PM
  #2
Administrator

Oldblue's Avatar

Join Date: 10-13-2011
Location: Welland,Ont Canada
Posts: 20,455
You can install a relay in the aftermarket harness,
Oldblue is offline
Old 12-04-2018, 02:07 PM
  #3
New Member
Thread Starter

Join Date: 12-17-2010
Location: LBC**562**
Posts: 27
OldBlue, yes, I have it all set up but wanted to know if the 12v source can be the empty fuse slot on the passenger side or do I need to hook it up directly to battery.

I have read posts where it was just hooked up the empty slot but think that would invite to a whole mess if the high amps heat up the wires inside the cabin hence why I want a relay.
BERNS is offline
Old 12-04-2018, 02:50 PM
  #4
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 17,259
Why not use the fog light fuse and relay that are probably installed but not used? The slots are there for sure.

You definitely need a relay. There is at least 1 how-to in the how to library.
donbrew is offline
Old 12-04-2018, 03:06 PM
  #5
Administrator

Oldblue's Avatar

Join Date: 10-13-2011
Location: Welland,Ont Canada
Posts: 20,455
Oldblue is offline
Old 12-04-2018, 04:41 PM
  #6
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 17,259
I'm not sure if that link covers wiring without using the BCM, but it does not take a genius how to use the low beam to switch the power to the fogs so that the fogs don't work with high beams. Might need 2 relays. fogs + high beam = illegal

I know the diagrams are somewhere on this site. GoOgle images "fog light wiring" gives lots of ideas.

This one turns the fogs off with high beams.

donbrew is offline
Old 12-05-2018, 10:38 PM
  #7
New Member
Thread Starter

Join Date: 12-17-2010
Location: LBC**562**
Posts: 27
Thank you. I would like to avoid using the fuse box (factory) method and wanted to know if I can tap into the low beam wire or can I hook up the positive wire from relay already installed by me directly to the post (jumpstart post) next to the fuse box with a fused wire. I already have it wired with a relay just need to know where to hook up to get 12v. I have never done wiring on a car with a trunk battery.
BERNS is offline
Old 12-06-2018, 08:24 AM
  #8
Administrator

Oldblue's Avatar

Join Date: 10-13-2011
Location: Welland,Ont Canada
Posts: 20,455

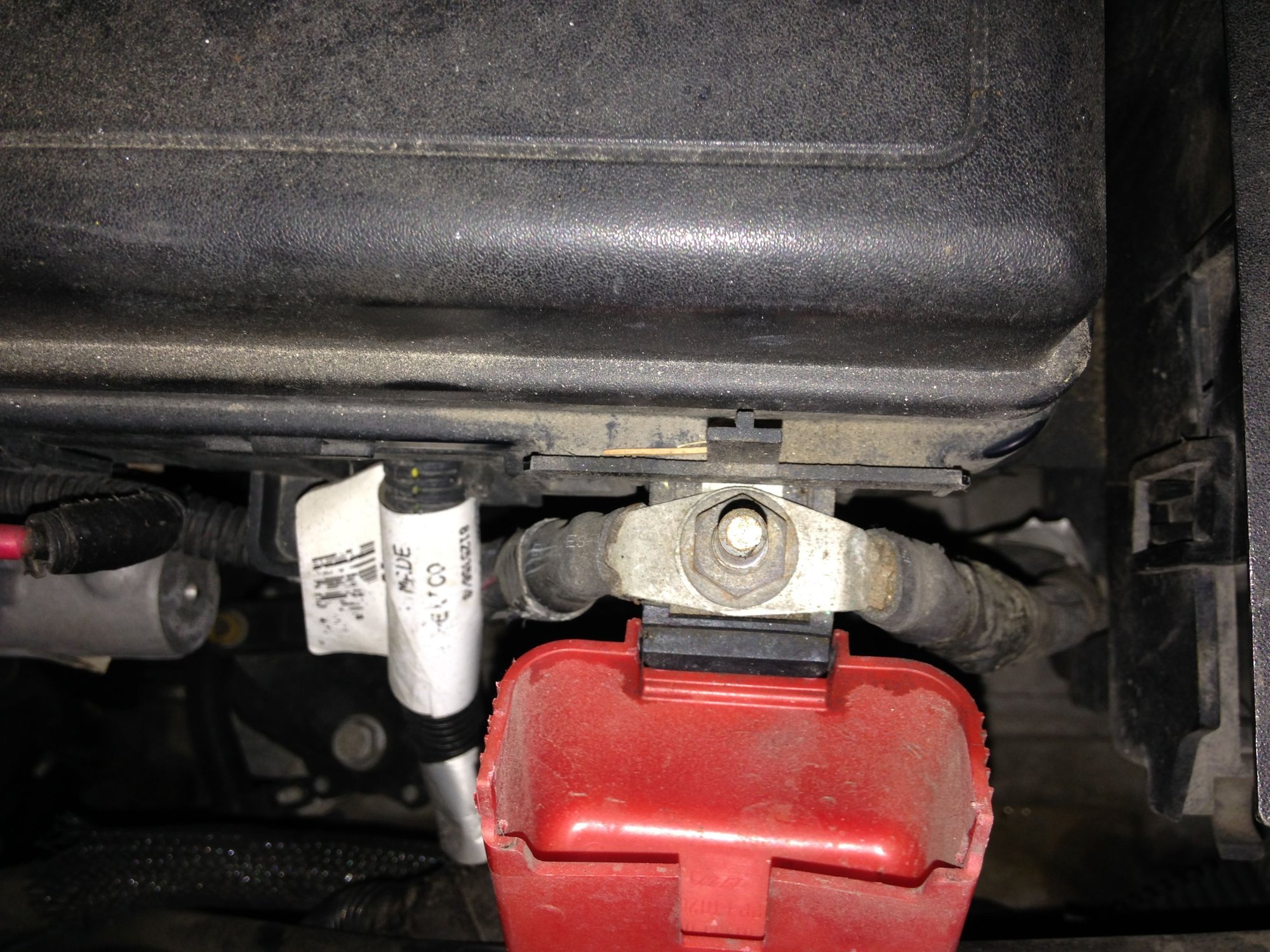

This post is the battery terminal,
the engine end
Oldblue is offline
Old 12-06-2018, 08:24 AM
  #9
Technical Moderator

donbrew's Avatar

Join Date: 01-23-2009
Location: Fredericksburg, Virginia
Posts: 17,259
Do it however you want. But directly to the battery or the main post is kind of "not smart" and ugly.

It would be best if it was a switched circuit. If I tapped the low beam I would tap the hot side and add an inline fuse
donbrew is offline
Old 12-06-2018, 10:59 AM
  #10
New Member
Thread Starter

Join Date: 12-17-2010
Location: LBC**562**
Posts: 27
Thanks to all for your support.

Apologize for not mentioning that I already wired up per the video attached including a cabin switch and all I need is a 12v source since I cannot connect directly to the battery.

BERNS is offline
