More Timing Chain Woes - 2009 SS Manual
#1
More Timing Chain Woes - 2009 SS Manual
Hi All,
Not really a request for advice, just wanted to share my experience.
I recently caught the HHR bug and quickly found a 2009 SS 5 speed in PA. Picked it up for a great price and it needed a new clutch. The engine also made a clacking noise in the timing chain area, so I knew it needed help there too. With only 93K miles on it, I wasn't too worried. I installed a LUK clutch kit and it drove nice, put over a thousand miles on it.
It threw a code for the intake VVT actuator solenoid and when I pulled it out to check it, I saw this:
The exhaust solenoid was a Dorman brand and looked fine, so I just replaced the intake one and the chain clacking quieted up, some...
I figured I better address the timing chain issue, so I ordered the 2 Cloyes kits - the balancer chain kit and the cam chain kit.
Pulled the valve cover off and found this:
Uh oh...

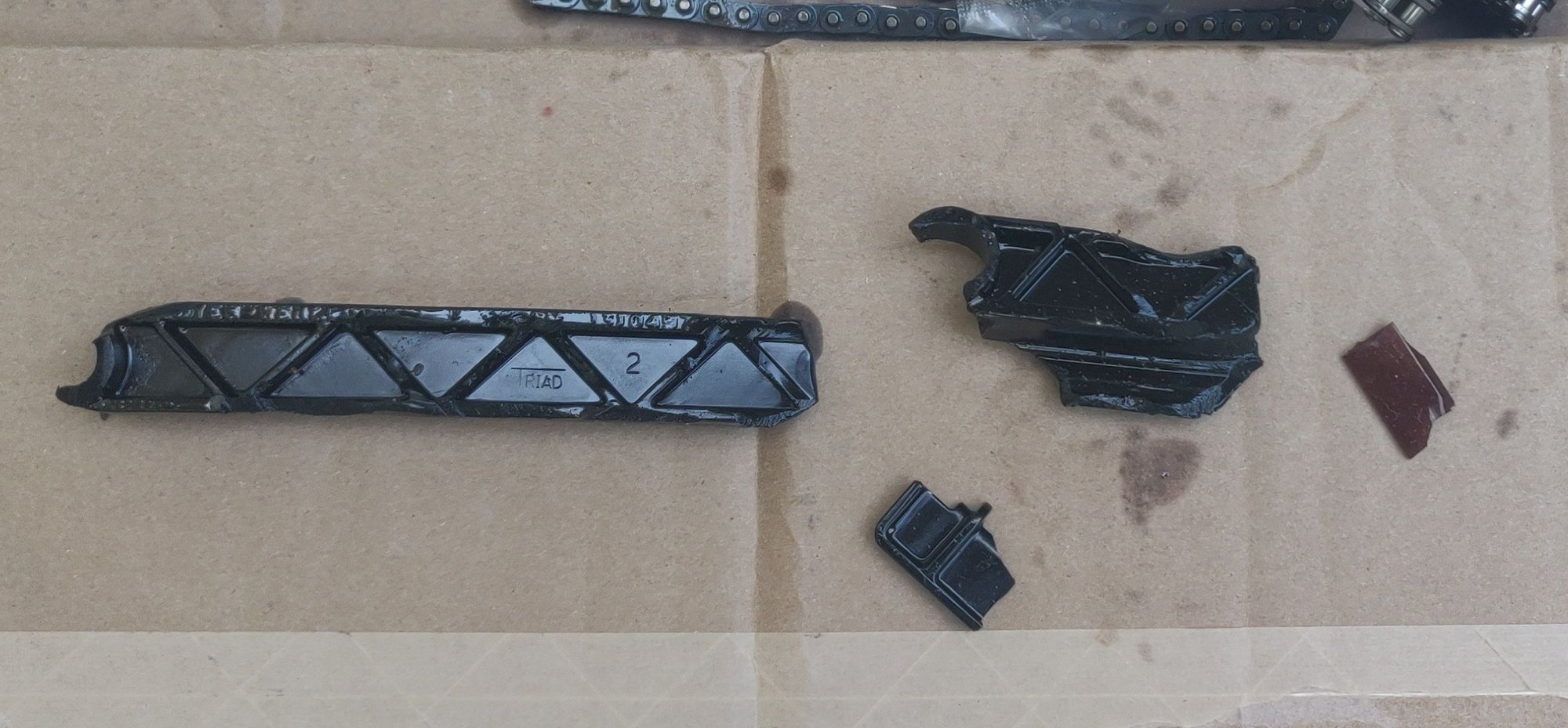

Pulled the rest of it apart and found this:
Needless to say, these are NOT all the pieces of the drive side chain guide...double uh oh...
I discovered there was no bolt where the upper part of this guide mounts (the one behind the plug in the block). So, I initially thought GM had left the bolt out - however unlikely that may seem. But, I then inspected the plug and found the evidence of the bolt actually backing out:
Since I could not find all of the pieces of chain guide and the missing bolt, I have to assume they are in the bottom of the oil pan. It looks like I should be able to pull the pan with ease, so that is my next task.
No use crying over spilled milk. There was some scrapes on the oil pump housing, nothing major and 2 other guide bolts were chewed up good. I went to the local scrap yard and snagged 3 guide bolts from a Malibu engine that was already torn apart and put it all back together.
It's amazing how much of a difference it made. The engine idles much smoother and doesn't jerk around at all anymore at part throttle, slow speed cruising under 20 mph.
All in all, I'm super stoked with my purchase and this is going to make a great, economical commuter car for me.
Cheers,
Robert
