A good friend of mine is building the exhaust system. I will try to relay to you in words and pictures how really spectacular it is coming out. The concept of how he is doing it is really simple....cut up a bunch of sections of mandrel bends and weld them back together. Executing it is another story. With only a chop saw, a 20" sander and the eyes of an eagle he has tac welded these pieces together with a gap you would have a hard time slipping a playing card between.

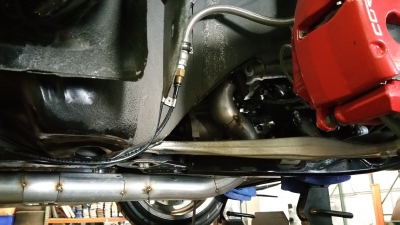

The first photo shows the way the tubing swoops around the front suspension on the passenger side. Thank God for tight bends. This was only required on this side, the driver side goes pretty straight.

This photo shows the distance the system hangs down under the car. The new rockers will cover this up. You will also note the cat locations. They are about 18" aft of where they should be. This was required due to ground clearance problems. I will use header wrap on the front section to keep the temperature up in the cats. Some trick programming may also be required in the ECU.


This shows the cats in relation to the transmission.


Here is how the mufflers fit in. The QuickTime cutouts go in this straight section in front of the mufflers.


From these tubes, 2 1/2" x 8" oval tips head out thru the rockers.

The final picture is of the stainless "V" clamps and the trick stainless hangers that finish off the system. The entire system will be ceramic Jet Coated. I don't impress easily, but he has blown me away.



Aye, laddie buck the pipes!!! Can't wait to hear 'em calling!!



OK so I stuck the rockers on the car to check ground clearance for the exhaust system. It looks like ite will be about 1" lower than the lowest part of the rockers.



But still just fine! Most cars have some of the pipes showing.

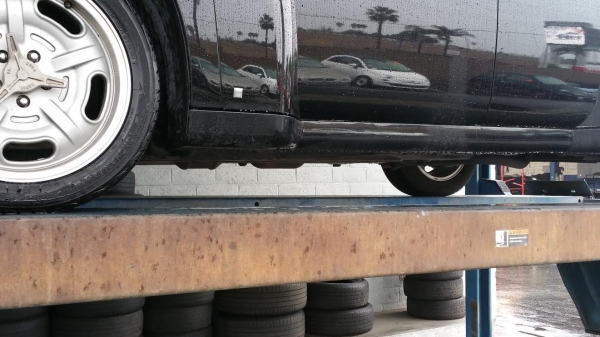

Yeah, I put my daily driver up on the rack today to see how much a stocker hung down and it is almost 2" in front of the rear tires and over 1" under the front seat area....so I guess the V8 car will look ok.



Ok?? Just Ok?? It shall be magnificent, awesome and a bag of chips!!!!
