Engine bay fuse panel rewire help please

Reply Subscribe

Thread Tools

Search this Thread

Jun 1, 2020 | 08:14 PM

#11

rafterman191

Thread Starter

New Member

Joined: 03-13-2013

Posts: 26

From: Indiana

Anyone have the PNP switch pin diagram or can tell me what the 12 and 5 pins power?

Jun 1, 2020 | 08:21 PM

#12

RJ_RS_SS_350

Moderator

Joined: 05-01-2014

Posts: 8,512

From: California

Pnp?

Jun 1, 2020 | 08:34 PM

#13

rafterman191

Thread Starter

New Member

Joined: 03-13-2013

Posts: 26

From: Indiana

Quote:

Originally Posted by RJ_RS_SS_350

Pnp?

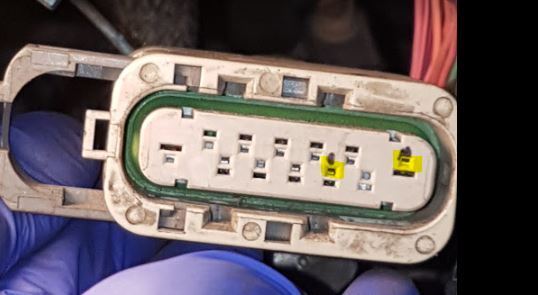

Park Neutral Position switch, right under the fuse box. I've got a pink wire to pin 5 and 12 of that connector. Here are the 2 pins highlighted in this picture, which do you think is 12 and which is 5? It is pictured the way it plugs in.

Last edited by rafterman191; Jun 1, 2020 at 09:06 PM.

Jun 1, 2020 | 09:10 PM

#14

rafterman191

Thread Starter

New Member

Joined: 03-13-2013

Posts: 26

From: Indiana

I think it is numbered l to r. That would make the bottom pin 5 and the top pin 12, right?

Jun 1, 2020 | 09:40 PM

#15

donbrew

Moderator

Joined: 01-23-2009

Posts: 26,533

From: Fredericksburg,VA

Jun 2, 2020 | 07:02 AM

#16

Oldblue

Administrator

Joined: 10-13-2011

Posts: 40,083

From: Welland,Ont Canada

Apparently yes

Jun 2, 2020 | 10:41 AM

#17

rafterman191

Thread Starter

New Member

Joined: 03-13-2013

Posts: 26

From: Indiana

Quote:

Originally Posted by donbrew

Thanks! I guess my logic was correct.

Jun 2, 2020 | 10:45 AM

#18

rafterman191

Thread Starter

New Member

Joined: 03-13-2013

Posts: 26

From: Indiana

***UPDATE*** Stayed up until 2:30am soldering all my connections. Got everything back together and back on the road today. Special thanks to Donbrew!!!
