Electrical Nightmare

Reply Subscribe

Thread Tools

Search this Thread

Feb 28, 2020 | 05:47 PM

#41

GreyHHR#2009

Thread Starter

Member

Joined: 02-15-2020

Posts: 67

From: MI

Quote:

Originally Posted by donbrew

What signal is being sent on the mast sw lk wires in both positions?

Are the color positions correct?

colors are correct
A full 12 vdc on the mast

Feb 28, 2020 | 05:52 PM

#42

GreyHHR#2009

Thread Starter

Member

Joined: 02-15-2020

Posts: 67

From: MI

Quote:

Originally Posted by donbrew

What signal is being sent on the mast sw lk wires in both positions?

Are the color positions correct?

12vdc on down less than 1vdc on up(all but drivers window are up and wont go down.

Feb 28, 2020 | 06:32 PM

#43

Oldblue

Administrator

Joined: 10-13-2011

Posts: 40,097

From: Welland,Ont Canada

Anything about the fuses in the thread link I posted?

Feb 28, 2020 | 07:00 PM

#44

donbrew

Moderator

Joined: 01-23-2009

Posts: 26,542

From: Fredericksburg,VA

I asked about the Mast sw lk sig wire. There is one to each of the dfoors. It should change depending on the position of the master lockout switch. I am not sure if it is ground or +.

Feb 29, 2020 | 08:16 AM

#45

GreyHHR#2009

Thread Starter

Member

Joined: 02-15-2020

Posts: 67

From: MI

Quote:

Originally Posted by RJ_RS_SS_350

Again, to be clear. Is the only window that works is the front left window, which operates from the master switch. No other windows work from any switch?

only the driver window moves and the 3 other switch relays click from the drivers and at the doors

Feb 29, 2020 | 09:26 AM

#46

RJ_RS_SS_350

Moderator

Joined: 05-01-2014

Posts: 8,513

From: California

Ok, that's 3 times you've quoted my post and given basically the same answer.

Feb 29, 2020 | 11:35 AM

#47

donbrew

Moderator

Joined: 01-23-2009

Posts: 26,542

From: Fredericksburg,VA

Quote:

Originally Posted by RJ_RS_SS_350

Ok, that's 3 times you've quoted my post and given basically the same answer.

The ONLY window that operates is the driver window from any switch. None of the single switches work. The driver gang switch only works on the driver window.

The other widows "click" when the driver switch is used to try them. There are no relays, so it must be the motors trying, thus my suggestion of low voltage.

Feb 29, 2020 | 02:26 PM

#48

GreyHHR#2009

Thread Starter

Member

Joined: 02-15-2020

Posts: 67

From: MI

Window update

Quote:

Originally Posted by donbrew

Have you read the previous 25 posts? I'm getting the feeling you only read 1 page.

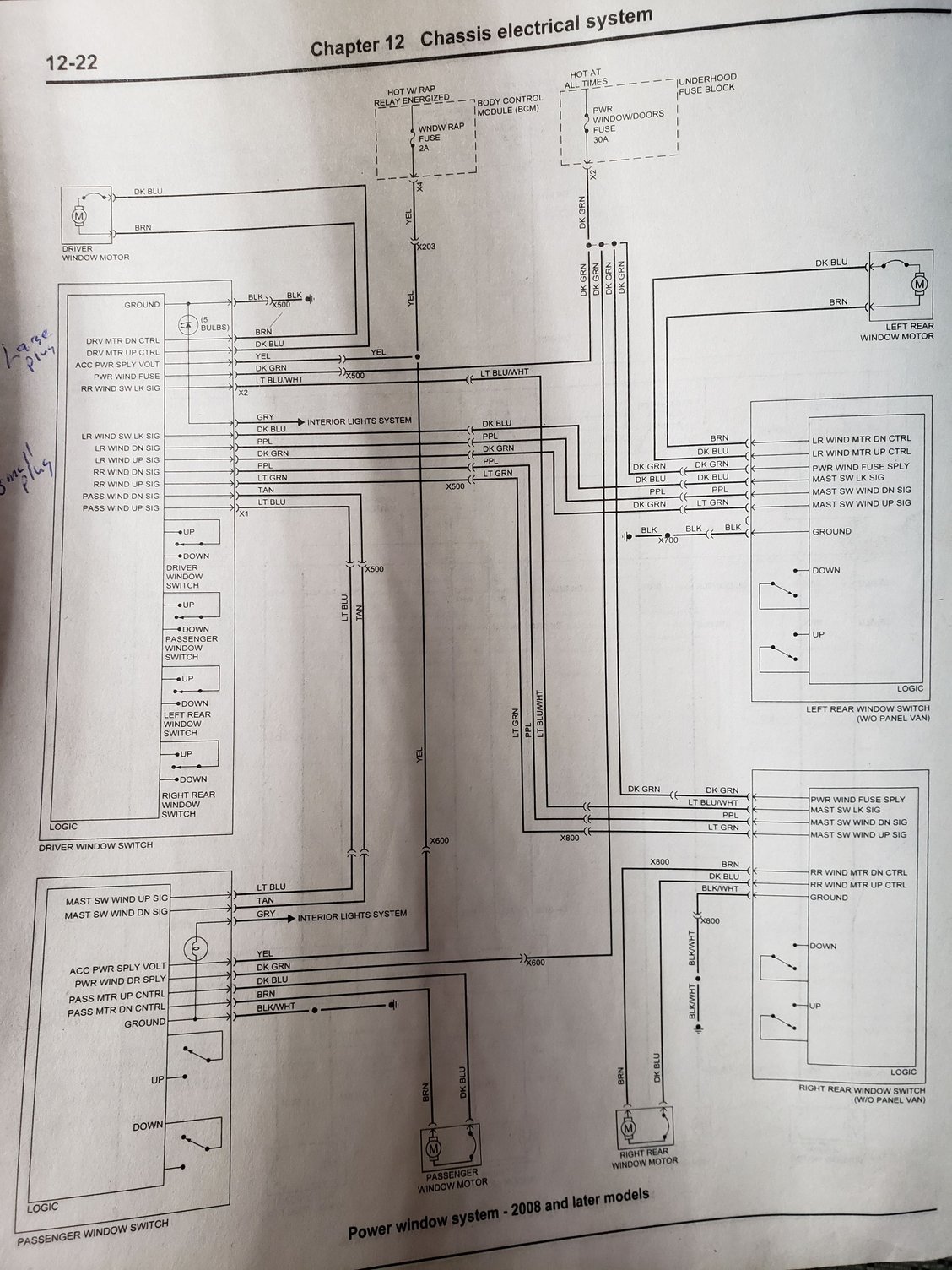

I posted a wiring diagram earlier, which explains why the power an ground at each switch would be good an they still don't operate.
In some of your descriptions you describe the lockout feature. It seems to change. Maybe typing in complete sentences and paragraphs would help us understand; I am too old to understand "text speak".

Please explain how all brand new switches that are wired to the manufacturer wiring diagram still dont work . Tryed working them with WINDOW LOCK SWITCH in both positions.

Feb 29, 2020 | 02:27 PM

#49

GreyHHR#2009

Thread Starter

Member

Joined: 02-15-2020

Posts: 67

From: MI

Quote:

Originally Posted by RJ_RS_SS_350

Is this the answer to my question? It's not clear, and it may be very important.

Yes it is the answer.

Feb 29, 2020 | 02:28 PM

#50

GreyHHR#2009

Thread Starter

Member

Joined: 02-15-2020

Posts: 67

From: MI

Quote:

Originally Posted by RJ_RS_SS_350

Again, to be clear. Is the only window that works is the front left window, which operates from the master switch. No other windows work from any switch?

Yes that is correct.
